Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminants should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
  1. Use the J 42450-A  to clean all rust and contaminants from the mating surface of the hub flange.
  2. Use the J 41013  to clean all rust and contaminants from the inside diameter of the hat section of the brake rotor to prevent any foreign material from getting between the brake rotor and the hub flange.
  3. Inspect the mating surfaces of the hub/axle flange and the rotor to ensure that there are no foreign particles or debris remaining.
  4. Align the rotor to its original position on the hub, if applicable.
    5. Fig 1: Aligning Rear Brake Rotor (W/NYS)
    GM686151Courtesy of GENERAL MOTORS CORP.
  5. Install the rotor by slowly turning the rotor while pushing the rotor towards the axle.
  6. If the brake rotor was removed and installed as part of a brake system repair, measure the assembled lateral runout (LRO) of the brake rotor to ensure optimum performance of the disc brakes. Refer to Brake Rotor Assembled Lateral Runout (LRO) Measurement .
  7. If the brake rotor assembled LRO measurement exceeds the specification, bring the LRO to within specifications. Refer to Brake Rotor Assembled Lateral Runout (LRO) Correction .
  8. Install the brake caliper and the brake caliper mounting bracket as an assembly to the vehicle.
  9. Perform the following procedure before installing the 2 brake caliper bracket mounting bolts.
    1. Remove all traces of the original adhesive patch.
    2. Clean the threads of the bolts with brake parts cleaner or the equivalent and allow to dry.
    3. Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488) to the threads of the bolts.
    10. NOTE: Refer to Fastener Notice in Cautions and Notices.
  10. Install the brake caliper bracket mounting bolts.

    Tighten:  Tighten the brake caliper bracket mounting bolts to 200 N.m (148 lb ft).

    11. Fig 2: Brake Caliper Bracket Mounting Bolts - Rear (W/NYS)
    GM789156Courtesy of GENERAL MOTORS CORP.
  11. Install the quarter shaft shield.
  12. Install the quarter shaft shield nut and the bolt.

    Tighten:  Tighten the quarter shaft shield nut and the bolt to 25 N.m (18 lb ft).

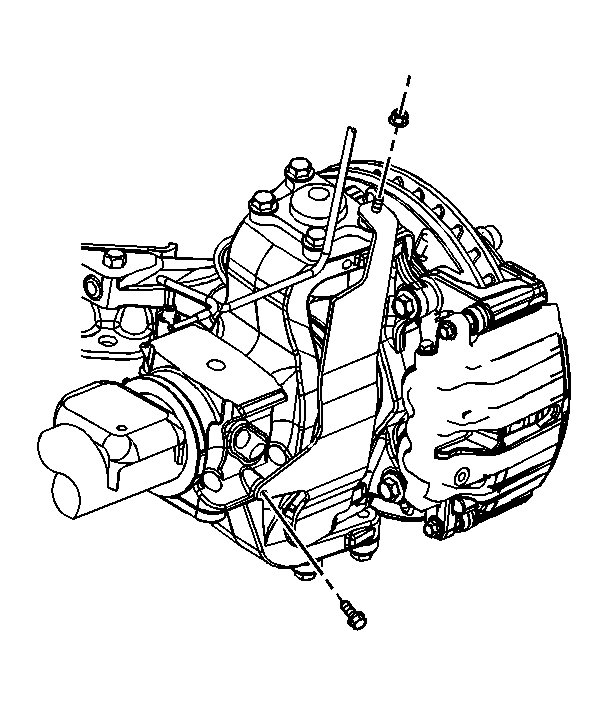

    13. Fig 3: Quarter Shaft Shield Nut & Bolt - Rear (W/NYS)
    GM791619Courtesy of GENERAL MOTORS CORP.
  13. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  14. Lower the vehicle.
  15. With the engine OFF gradually apply the brake pedal to approximately 2/3 of it's travel distance.
  16. Slowly release the brake pedal.
  17. Wait 15 seconds then repeat steps 15-16 until a firm pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
