Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission oil cooler lines to the vehicle.
  2. Install the cooling lines to the transmission. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

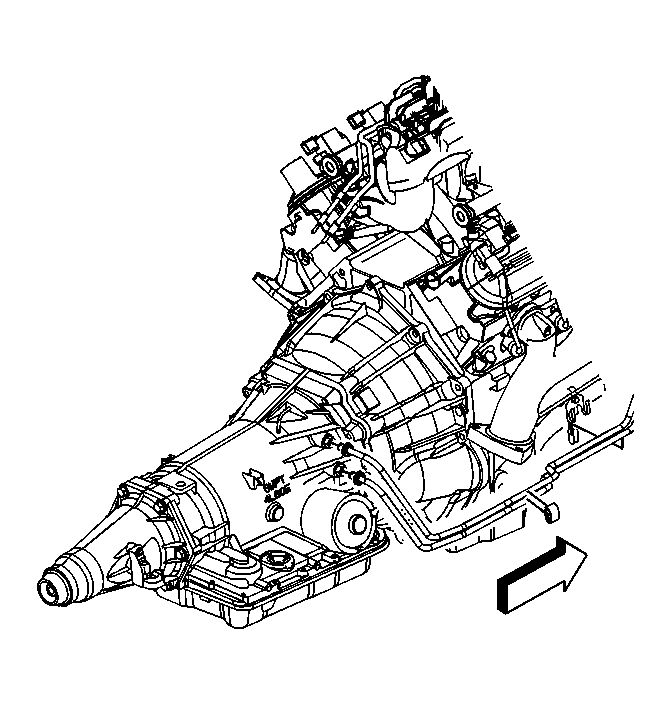

    Fig 1: View Of Transmission Oil Cooler Lines
    GM396804Courtesy of GENERAL MOTORS CORP.
    Fig 2: Installing The Transmission Oil Cooler Lines To The Cooler
    GM396817Courtesy of GENERAL MOTORS CORP.
  3. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.
  4. Lower the vehicle.
  5. Install the transmission fluid cooler hose to the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
  6. Install the transmission fluid cooler hose to the Auxiliary oil cooler. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
  7. Install the front grill assembly. Refer to Grille Replacement (GMC) or Grille Replacement (Chevrolet) in Exterior Trim.
