Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the starter/generator rotor. Refer to Starter/Generator Rotor Replacement (5.3L Engine w/RPO HP2) .
  2. Install the J 45849  (1) into the locator bushing (2).

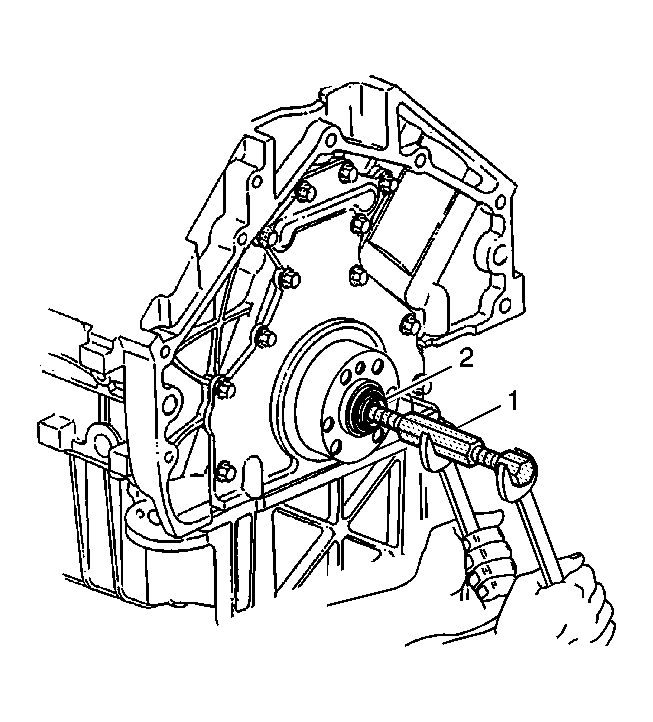

    Fig 1: Installing The J 45849 Into The Locator Bushing
    GM1277134Courtesy of GENERAL MOTORS CORP.
  3. Using 2 wrenches, rotate the inner shaft of J 45849  , in order to remove the bushing.
    4. Fig 2: Removing The Locator Bushing
    GM1237554Courtesy of GENERAL MOTORS CORP.
  4. Remove the locator bushing.
