Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bushing into the end of the crankshaft.

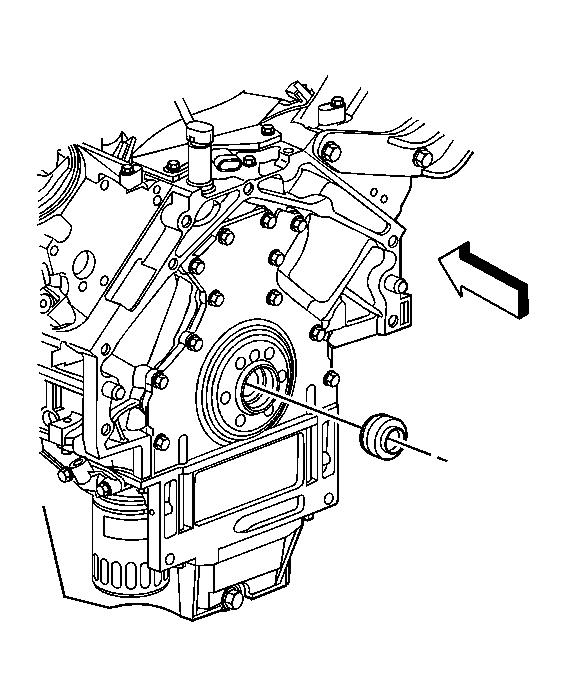

    Fig 1: Positioning The Bushing Into The End Of The Crankshaft
    GM1237554Courtesy of GENERAL MOTORS CORP.
    2. Fig 2: Using J 8433-1 And J 45949 To Install The Locator Bushing
    GM1277132Courtesy of GENERAL MOTORS CORP.
  2. Using J 8433-1  (1) and J 45949  (2) install the locator bushing (3) into the rear of the crankshaft.
  3. Inspect the locator bushing for proper installation. A properly installed bushing should protrude no more than 8.4 mm (0.33 in) (a) from the rear of the crankshaft.

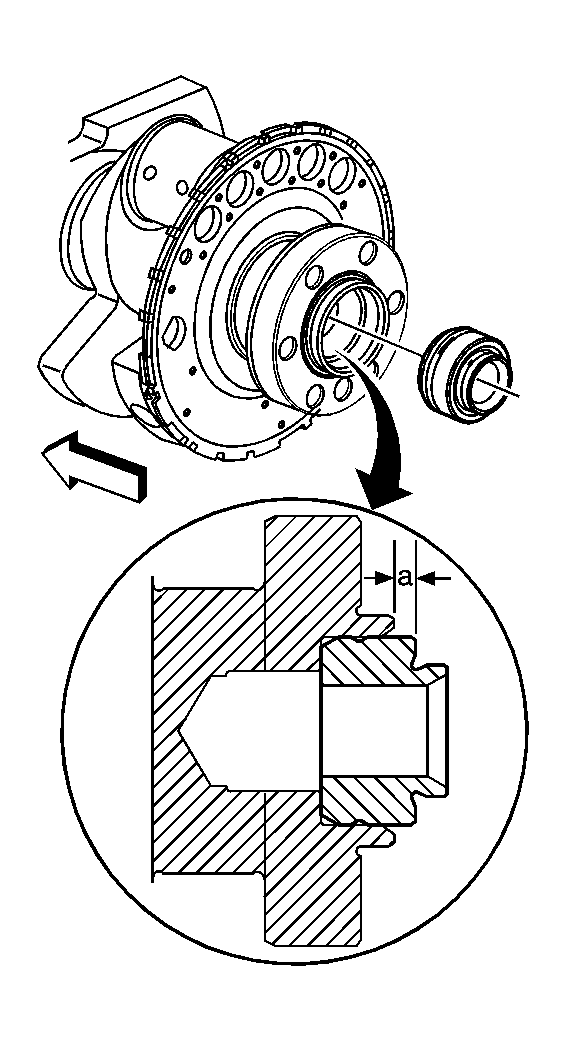

    Fig 3: Locator Bushing Installed Depth
    GM1277126Courtesy of GENERAL MOTORS CORP.
  4. Install the starter/generator rotor. Refer to Starter/Generator Rotor Replacement (5.3L Engine w/RPO HP2) .
