Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Shift the transmission into neutral.
  3. If equipped with 4-wheel drive (4WD), remove the front propeller shaft. Refer to Propeller Shaft Replacement - Front in Driveline/Axle.
  4. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  5. Disconnect the park/neutral position (PNP) switch electrical connector (2).
    Fig 1: Disconnecting The Park/Neutral Position (PNP) Switch Electrical Connector
    GM1284299Courtesy of GENERAL MOTORS CORP.
  6. Remove the manual shaft lever nut.
  7. Remove the transmission control lever from the manual shaft.

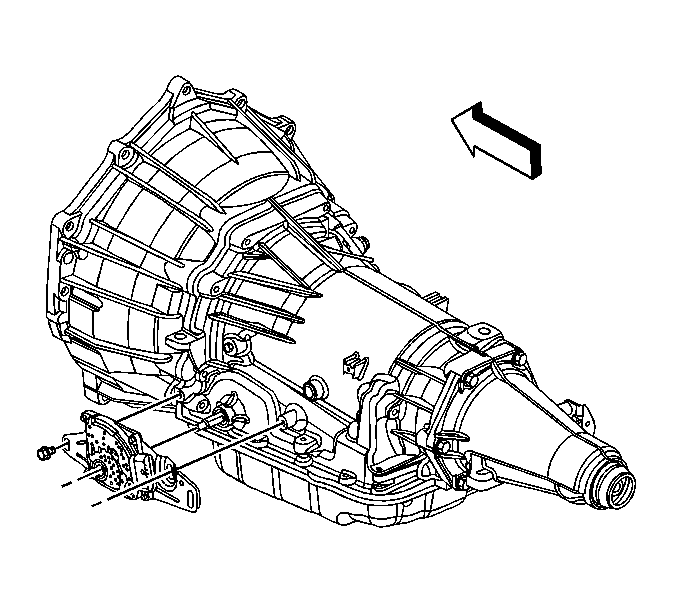

    Fig 2: Removing The PNP Switch
    GM1480483Courtesy of GENERAL MOTORS CORP.
  8. Remove the PNP switch bolts.
  9. Remove the PNP switch from the manual shaft. If the PNP switch did not slide off the manual shaft, file the outer edge of the manual shaft in order to remove any burrs.
