Automatic Transmission Internal Connector End Views (M33 Only)

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

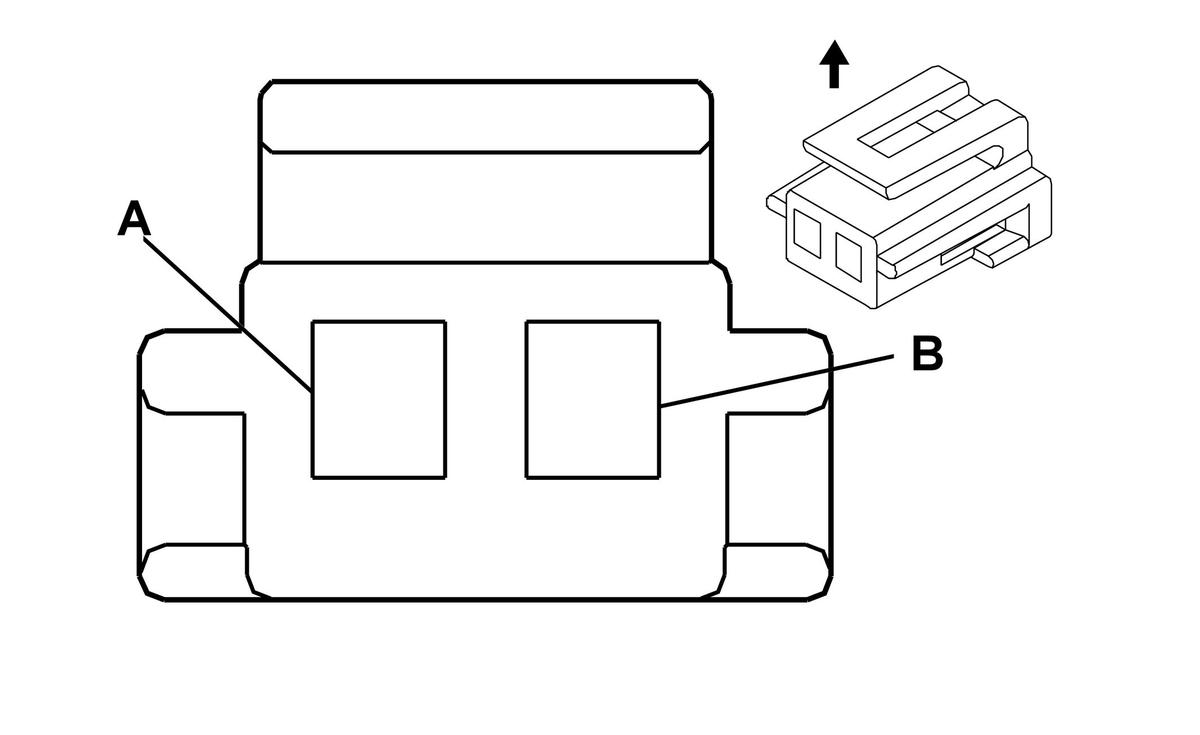

Auxiliary Transmission Fluid Pump (M33 Only)

GM704047Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1205911
  • ASM Conn 2F M/P 150 Black
Pin Wire Color Circuit No. Function
A GRY 5259 Ground
B PNK 739 Ignition 1 Voltage
Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

GM168424Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162213
  • Conn 5F M/P 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A BRN 1227 TFT Sensor Signal
B GRY 452 Low Reference
C PNK 1224 Transmission Fluid Pressure Switch Signal A
D ORN 1226 Transmission Fluid Pressure Switch Signal C
E DK BLU 1225 Transmission Fluid Pressure Switch Signal B
1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162201
  • Conn 2F M/P 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A RED 839B Ignition 1 Voltage
B LT GRN 1222 1-2 Shift Solenoid Valve Control
2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162201
  • Conn 2F M/P 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A RED 839A Ignition 1 Voltage
B YEL 1223 2-3 Shift Solenoid Valve Control
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162202
  • Conn 2F M/P 150.2 P2S (BLU)
Pin Wire Color Circuit No. Function
A RED 839E Ignition 1 Voltage
B TAN 418 TCC PWM Solenoid Valve Control
3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side

GM82345Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146094
  • Conn 2F M/P 150.2 P2S (MD GRY)
Pin Wire Color Circuit No. Function
A WHT 687 3-2 Shift Solenoid Valve Control
B RED 839C Ignition 1 Voltage
Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

GM1240818Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146800
  • Conn 2F M/P 150.2 (LT GRY) Delphi
Pin Wire Color Circuit No. Function
A PPL 1228 PC Solenoid Valve High Control
B LT BLU 1229 PC Solenoid Valve Low Control
Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side

GM168419Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10478128
  • CBL Solenoid Valve
Pin Wire Color Circuit No. Function
A RED 839D Ignition 1 Voltage
B BLK 422 TCC Solenoid Valve Control
