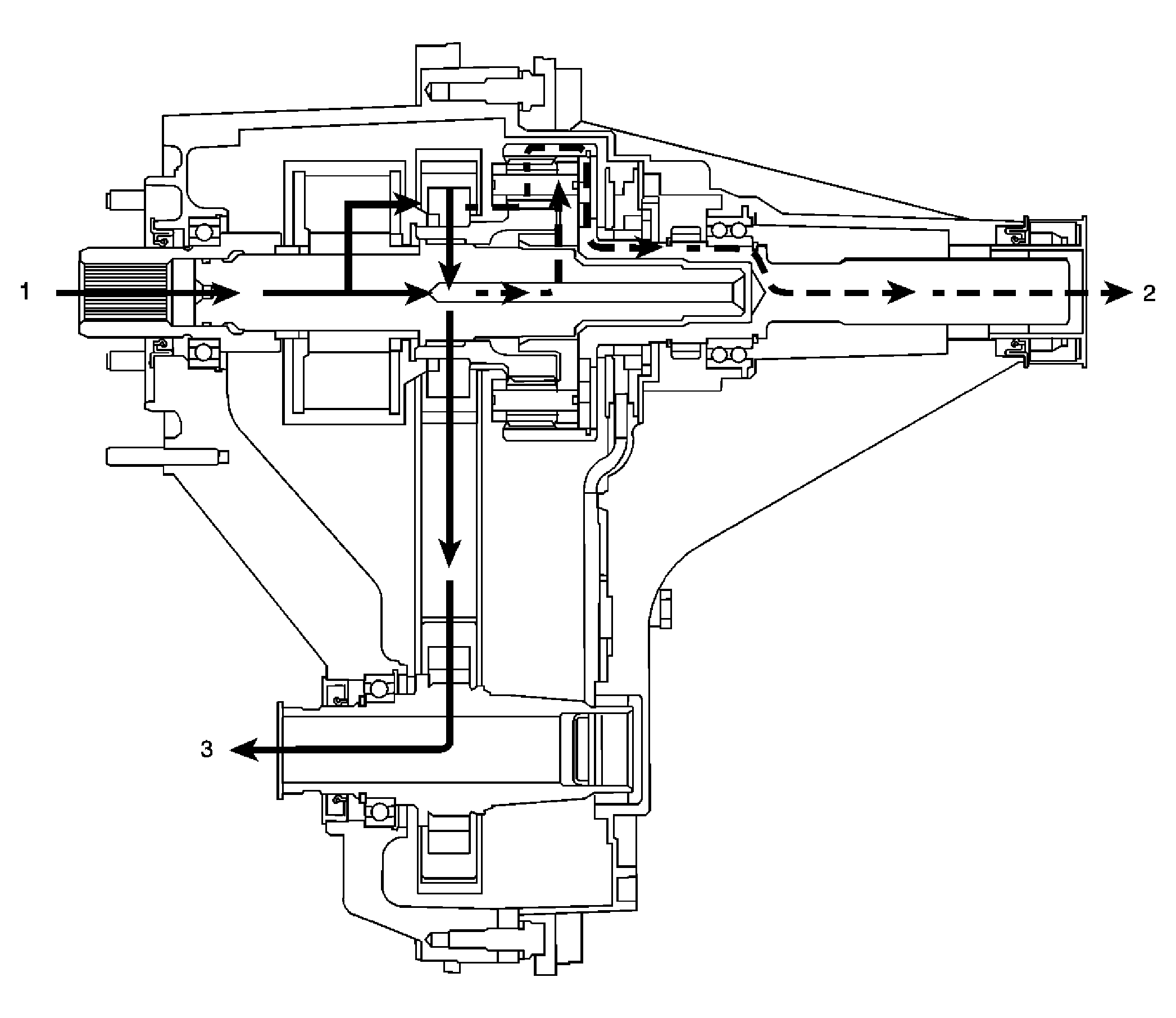

Power Flow - Rear Wheels Slip
When traction is lost at the rear wheels, the torque is biased to the front wheels. The torque to the front output shaft (3) goes higher from the 38 percent, up to 100 percent torque. The torque at the rear output shaft (2) is lowered from the 62 percent, to as low as 0 percent torque.
Customers may have concern that the transfer case is not operating properly because one set of tires spun for a brief period. It is normal for one set of tires to spin until the viscous coupling engages.
Turning off the traction control switch, if equipped, enhances the function of the viscous coupling. The viscous coupling, as described above, engages by heat. Allowing one set of tires to spin or slip for a brief period will generate heat in the viscous coupling. The engine speed should be kept at a constant speed during the brief spin of the tires. Pulsating the engine speed or hard acceleration will not allow the viscous coupling to operate properly.
