Power Flow - No Wheels Slip
WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

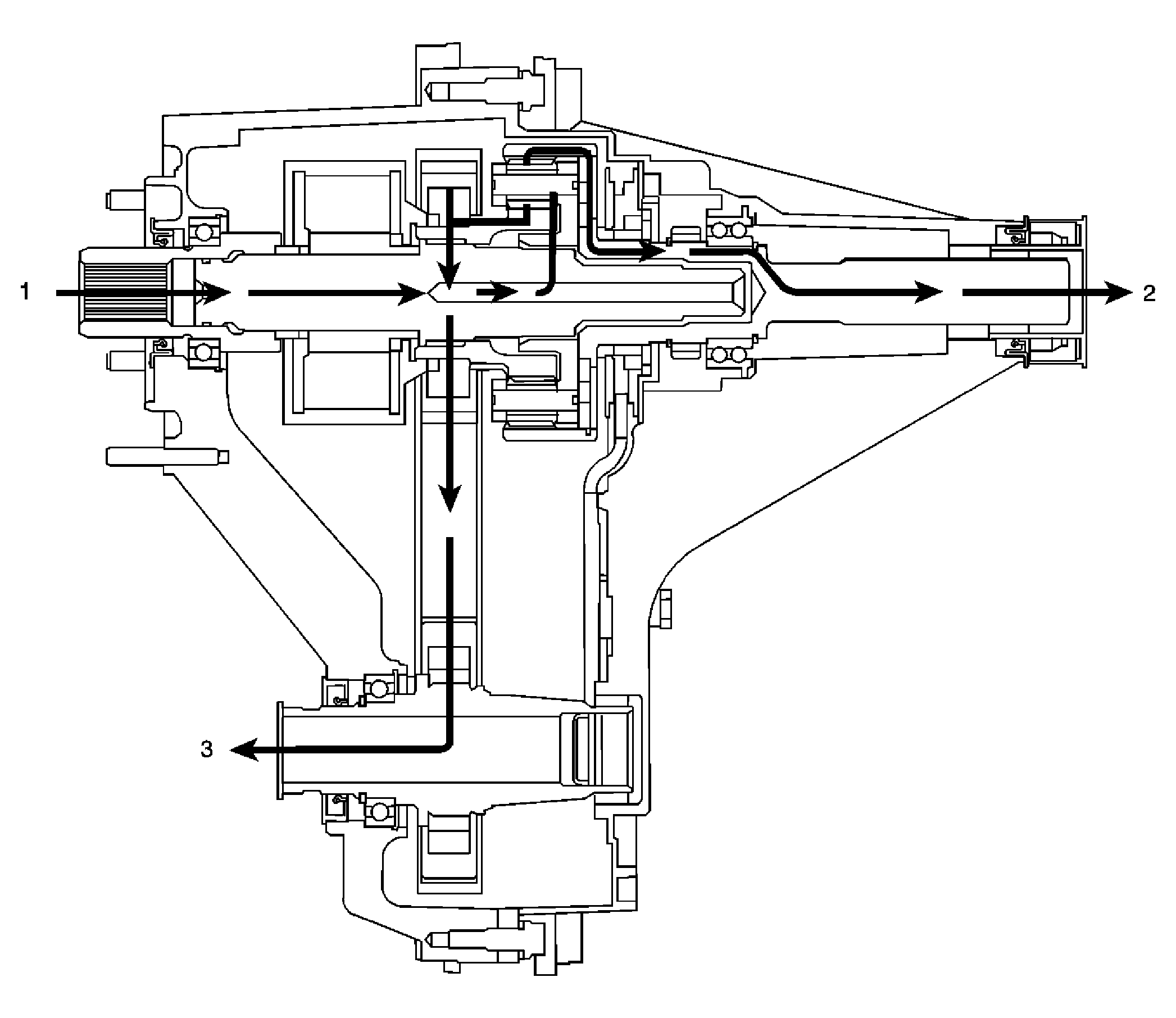

During normal operation, 100 percent torque is delivered to the input shaft (1) from the transmission. The torque is split to 62 percent to the rear output shaft (2) and 38 percent to the front output shaft (3), by the planetary differential. Because there is not a loss in traction or slip in the front or rear wheels, the viscous coupling is locked in place and there is no "shear" mode or "hump" mode involved.
