Seat Belt Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

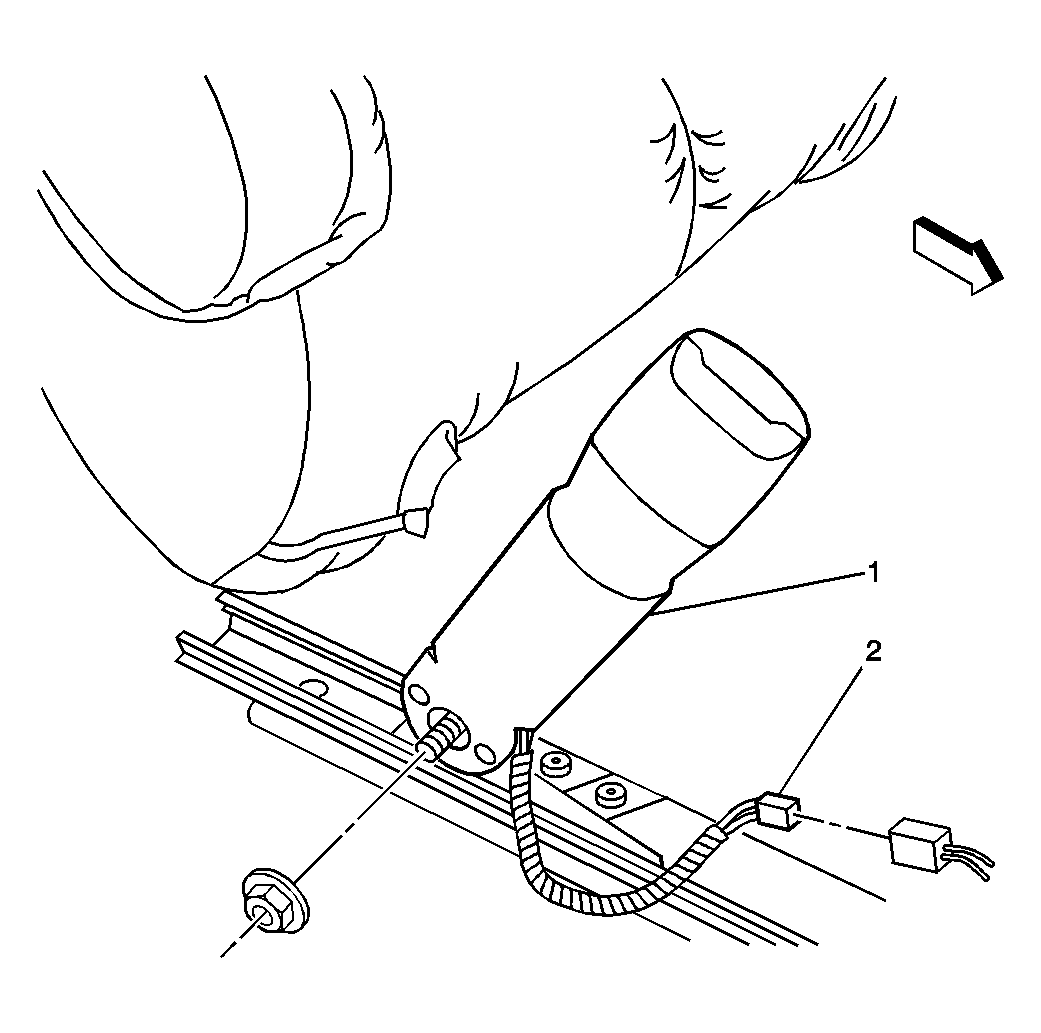

Fig 1: Driver Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle
2	Seat Belt Switch Connector

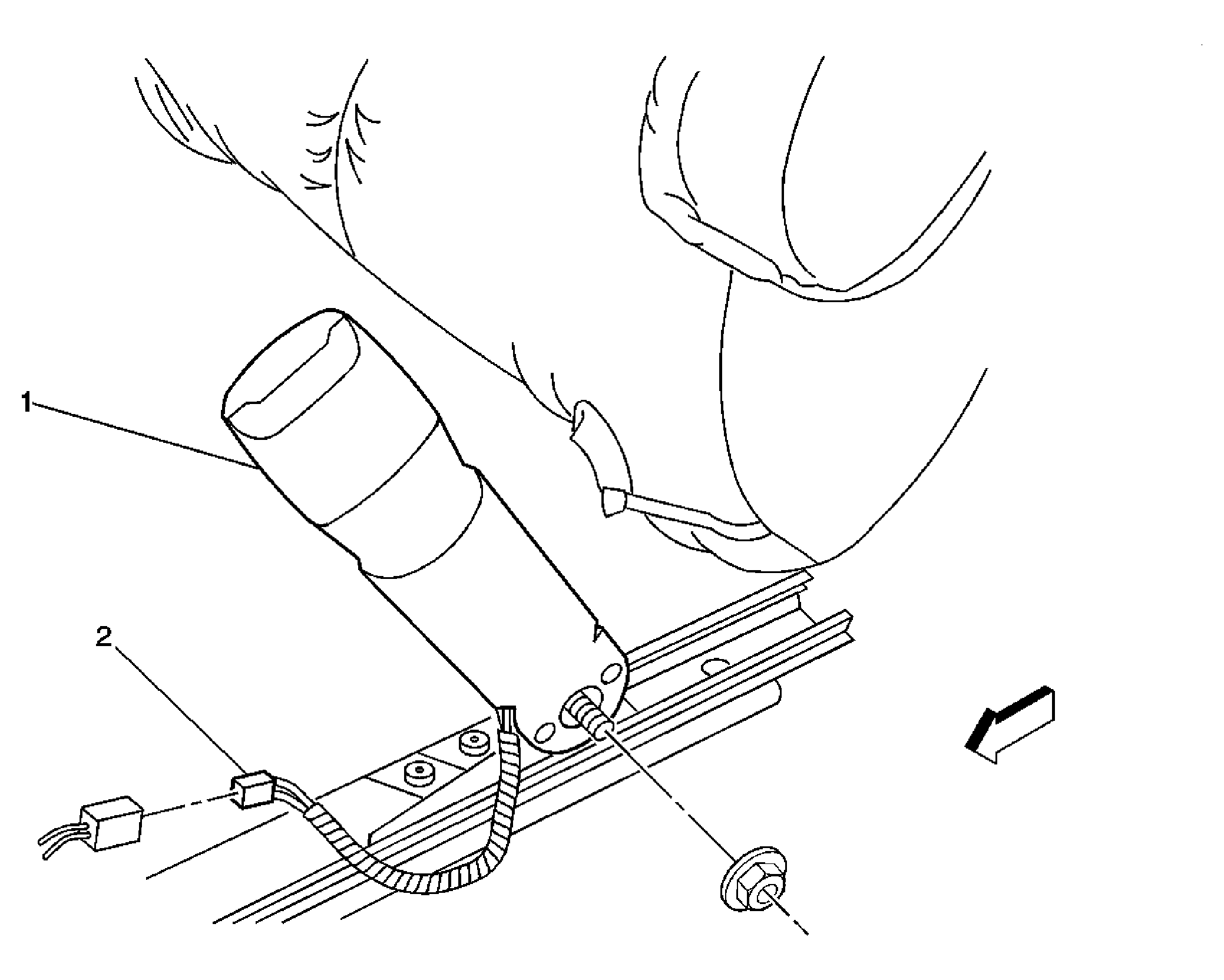

Fig 2: Passenger Seat Belt Buckle (AL0)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle
2	Seat Belt Switch Connector (AL0)
