Section 1029 (Automatic Transmission - 4L60-E/4L65-E (Troubleshooting))
>>
Troubleshooting
>>
Tow/Haul Switch/Indicator Always On or Inoperative
>>
Notes
Tow/Haul Switch/Indicator Always On or Inoperative: Notes
WARNING:
This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

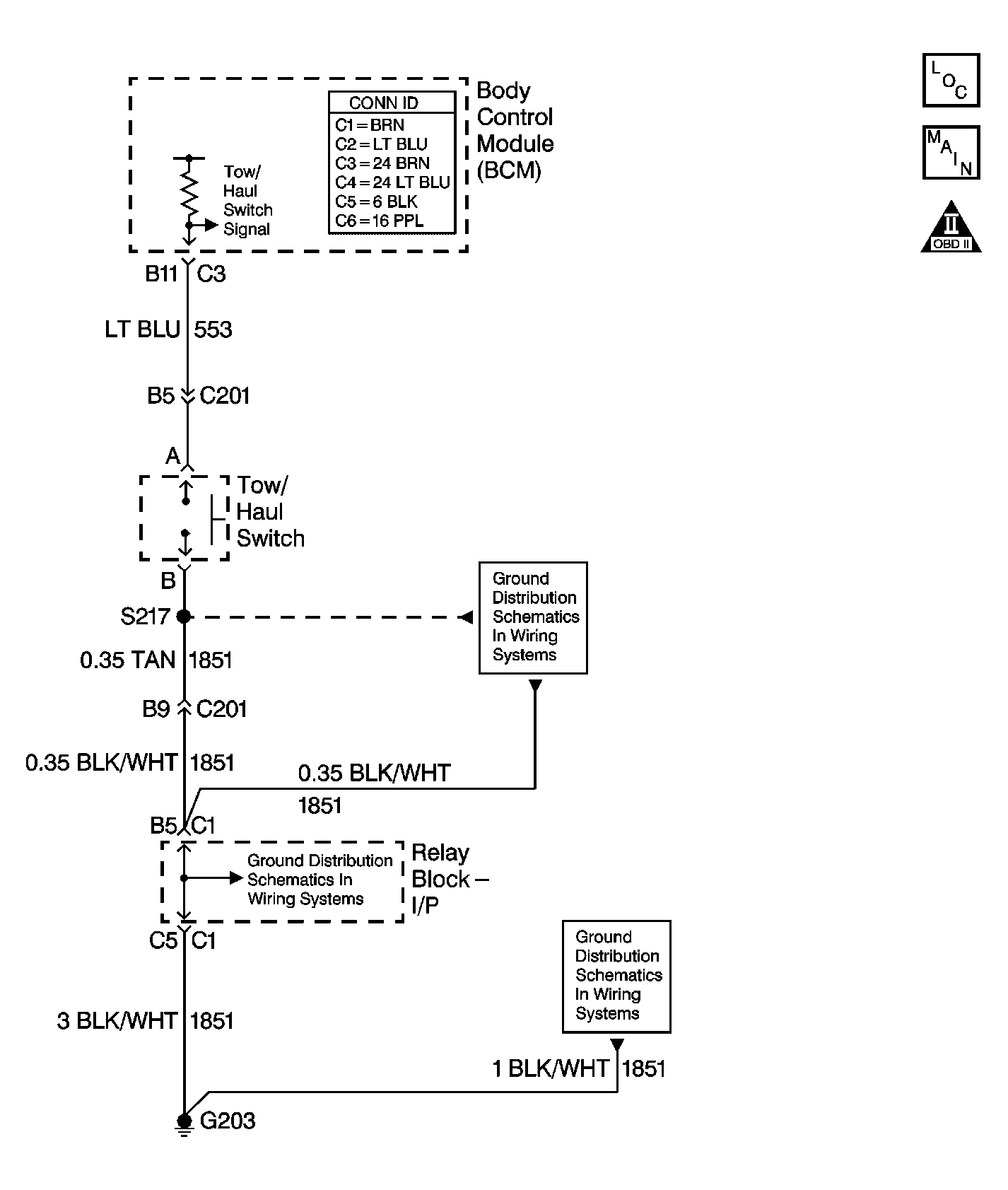

Fig 1: Tow/Haul Switch Schematic
Courtesy of GENERAL MOTORS CORP.
