Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Disconnect the speed sensor electrical connector (4).

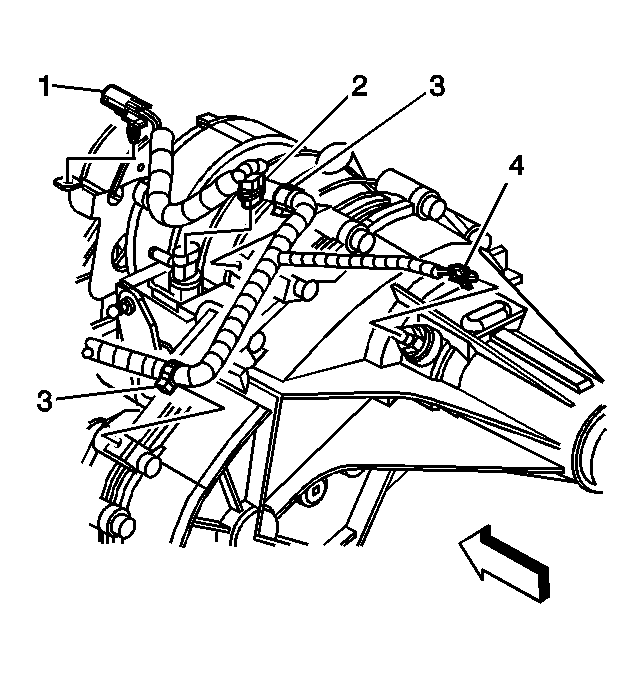

    3. Fig 1: Disconnecting Transfer Case Speed Sensor Electrical Connector
    GM860643Courtesy of GENERAL MOTORS CORP.
  3. Remove the speed sensor.
    4. Fig 2: Removing Transfer Case Speed Sensor
    GM394335Courtesy of GENERAL MOTORS CORP.
