Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
  2. Disconnect the gear indicator switch electrical connector (2).
    3. Fig 1: Disconnecting Transfer Case Gear Indicator Switch Electrical Connector
    GM860643Courtesy of GENERAL MOTORS CORP.
  3. Remove the gear indicator switch.

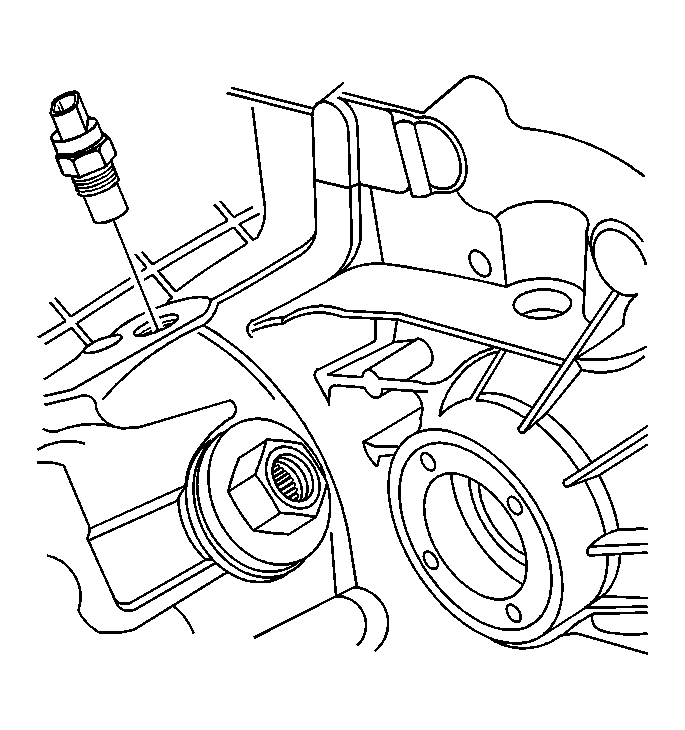

    4. Fig 2: Removing Transfer Case Gear Indicator Switch
    GM393367Courtesy of GENERAL MOTORS CORP.
