Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower valve rocker arm cover gasket.
  2. Install the lower valve rocker arm cover.
    3. Fig 1: View Of Lower Valve Rocker Arm Cover, Bolts & Gasket (Lower Right)
    GM660476Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the lower valve rocker arm cover bolts. Start with bolts 1 and 2, they are used to position the cover.

    Tighten the bolts in the sequence shown.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    4. Fig 2: Lower Valve Rocker Arm Cover Bolts Tightening Sequence
    GM663902Courtesy of GENERAL MOTORS CORP.
  4. Install the injector harnesses.
  5. Install the injector harness bracket bolts.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  6. Tighten the encapsulated injector wire terminal nuts on each injector.

    Tighten:  Tighten the nuts to 2 N.m (17 lb in).

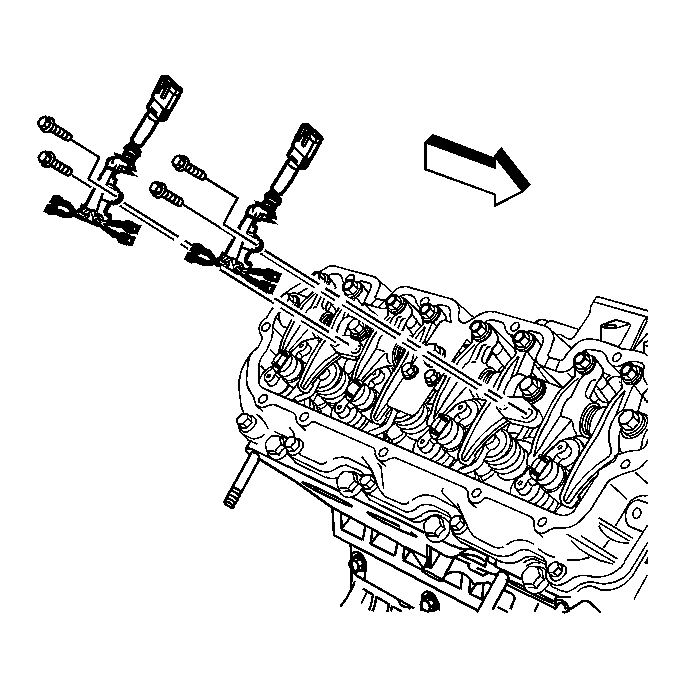

    7. Fig 3: View Of Injector Harness Bracket & Bolts (Lower Right)
    GM660474Courtesy of GENERAL MOTORS CORP.
  7. Connect the fuel injector electrical connectors.
  8. Install the right upper valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Upper Right .
