Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner. Align the pin with the hole in the generator bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten:  Tighten bolt to 41 N.m (30 lb ft).

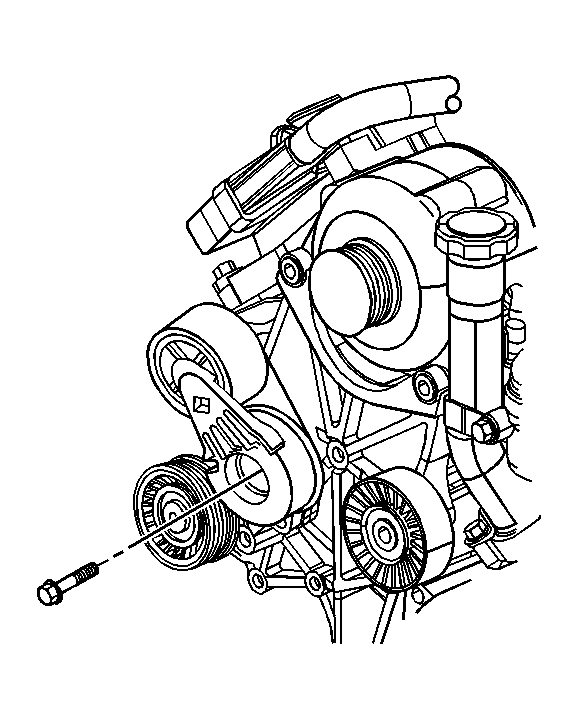

    3. Fig 1: View Of Drive Belt Tensioner Bolt
    GM794630Courtesy of GENERAL MOTORS CORP.
  3. Install the drive belt. Refer to Drive Belt Replacement .
