Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the right side idler pulley and bolt.
Tighten: Tighten the bolt to 37 N.m (27 lb ft).

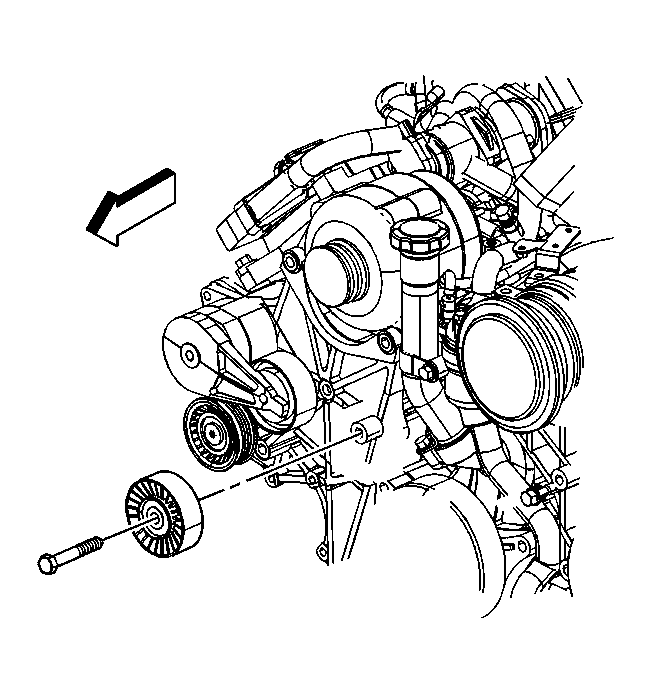

Fig 1: View Of Right Side Idler Pulley & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the center idler pulley and bolt.
Tighten: Tighten the bolt to 37 N.m (27 lb ft).

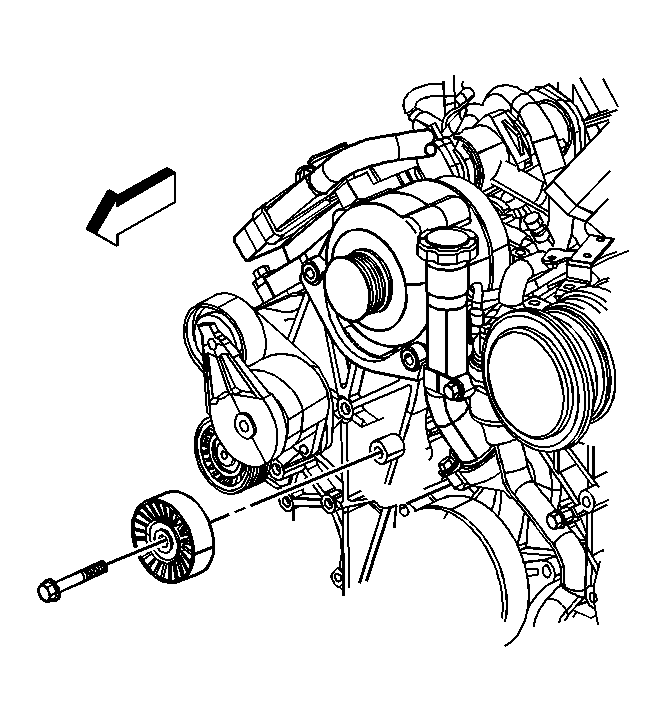

Fig 2: View Of Center Idler Pulley & Bolt

Courtesy of GENERAL MOTORS CORP.

If equipped with dual generators, install the left side idler pulley and bolt.
Tighten: Tighten the bolt to 37 N.m (27 lb ft).

Fig 3: View Of Left Side Idler Pulley & Bolt (Dual Generators)

Courtesy of GENERAL MOTORS CORP.

Install the drive belt. Refer to Drive Belt Replacement .
