Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install a new valve rocker arm cover gasket if the gasket was removed from the rocker arm cover.
Install the valve rocker arm cover.

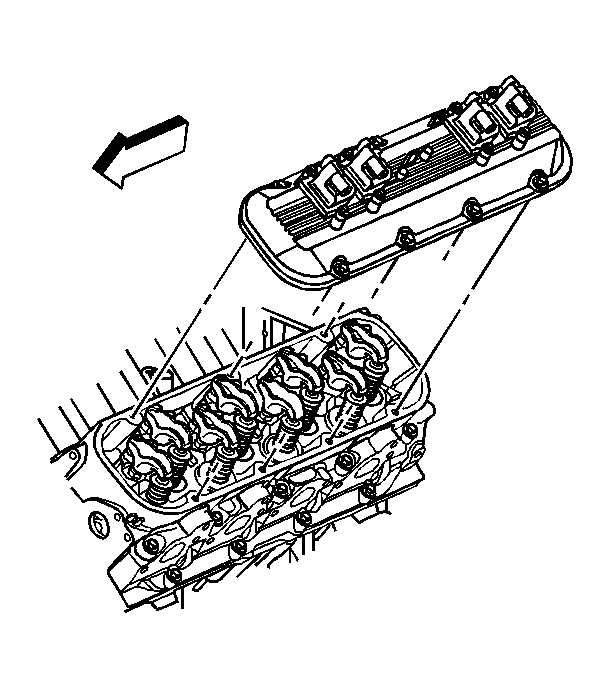

Fig 1: View Of Valve Rocker Arm Cover (Left)

Courtesy of GENERAL MOTORS CORP.

Install the valve rocker arm cover bolts.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the valve rocker arm cover bolts in the sequence shown, using two passes as shown.
Tighten:
- Tighten the bolts a first pass to 6 N.m (53 lb in).
- Tighten the bolts a final pass to 12 N.m (106 lb in).

Fig 2: Valve Rocker Arm Cover Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Fully install the spark plug wire by pushing on the exposed end of the spark plug boot. Do not push the spark plug wire on to the spark plug by using the metal heat shield.

Install the spark plug wires to the spark plugs and ignition coils.

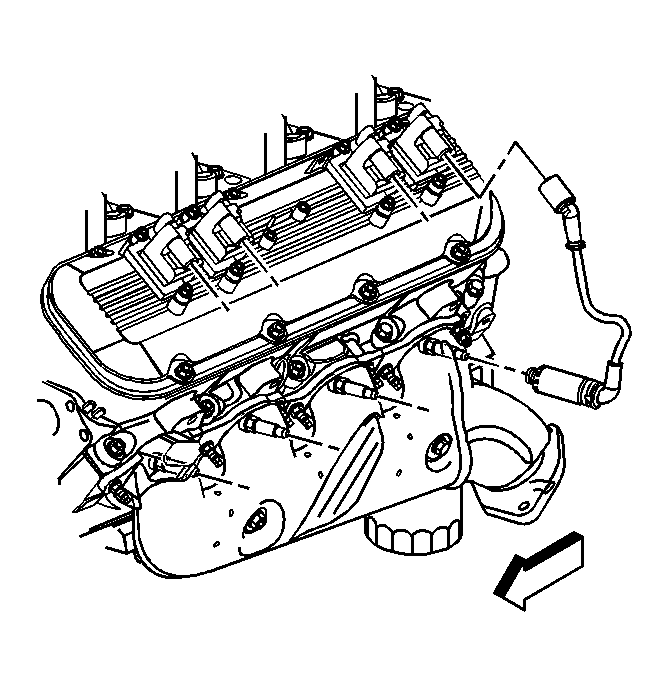

Fig 3: View Of Spark Plug Wires (Left)

Courtesy of GENERAL MOTORS CORP.

Connect the ignition coil harness electrical connector (4).

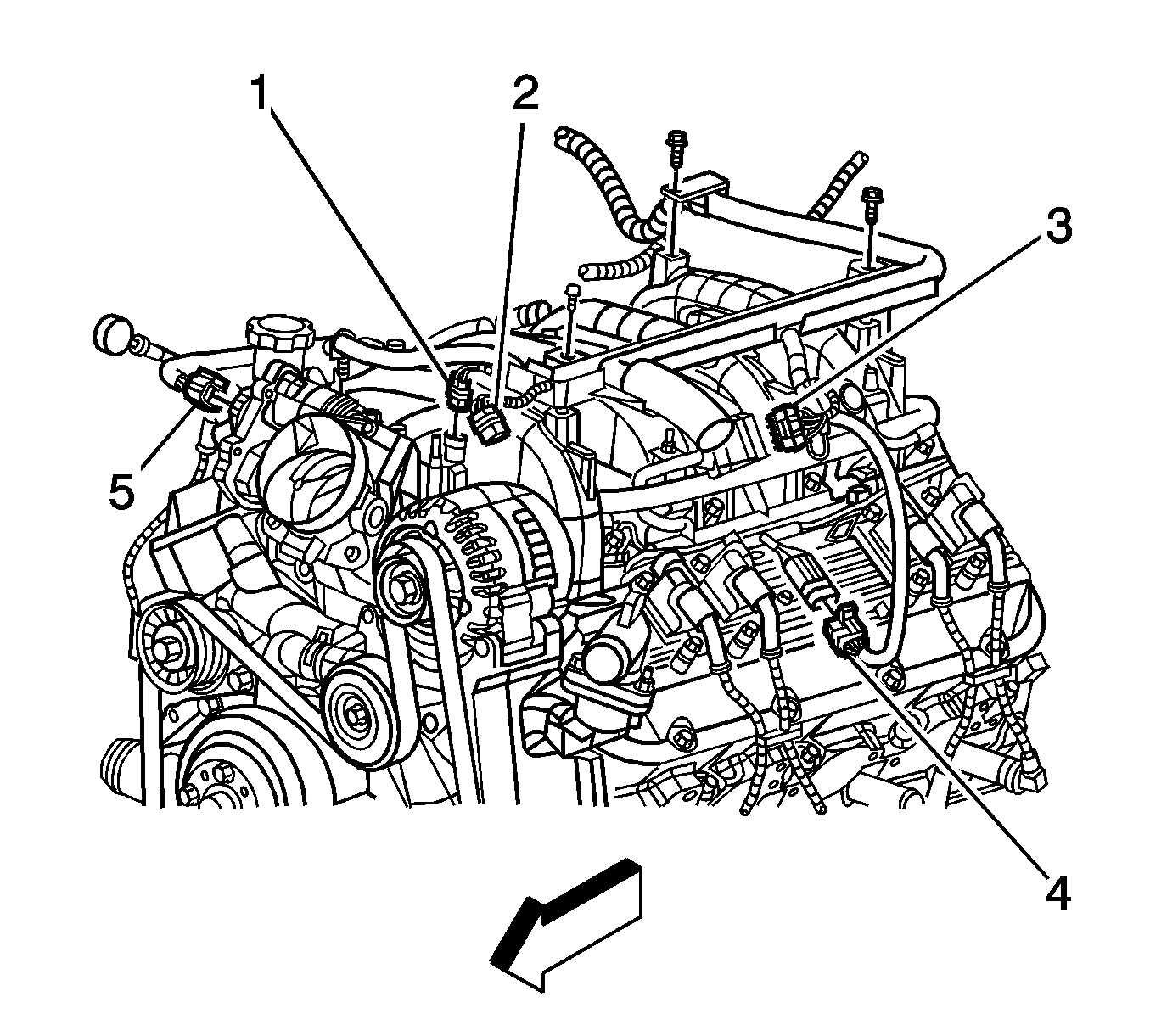

Fig 4: View Of Generator, Injector Harness, Ignition Coil Harness, ETC & Purge Valve Solenoid Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Install the CPA retainer to the ignition coil electrical connector.
Install the engine sight shield. Refer to Engine Sight Shield Replacement .
