Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  2. Aligned the timing marks on the camshaft and crankshaft sprockets.
  3. Remove the camshaft sprocket bolts.
  4. Remove the camshaft sprocket and timing chain.
    5. Fig 1: View Of Camshaft Sprocket, Timing Chain & Bolts
    GM1150711Courtesy of GENERAL MOTORS CORP.
  5. Install the J 42846  (1) into the end of the crankshaft.
  6. Remove the crankshaft sprocket using a suitable three jaw puller.

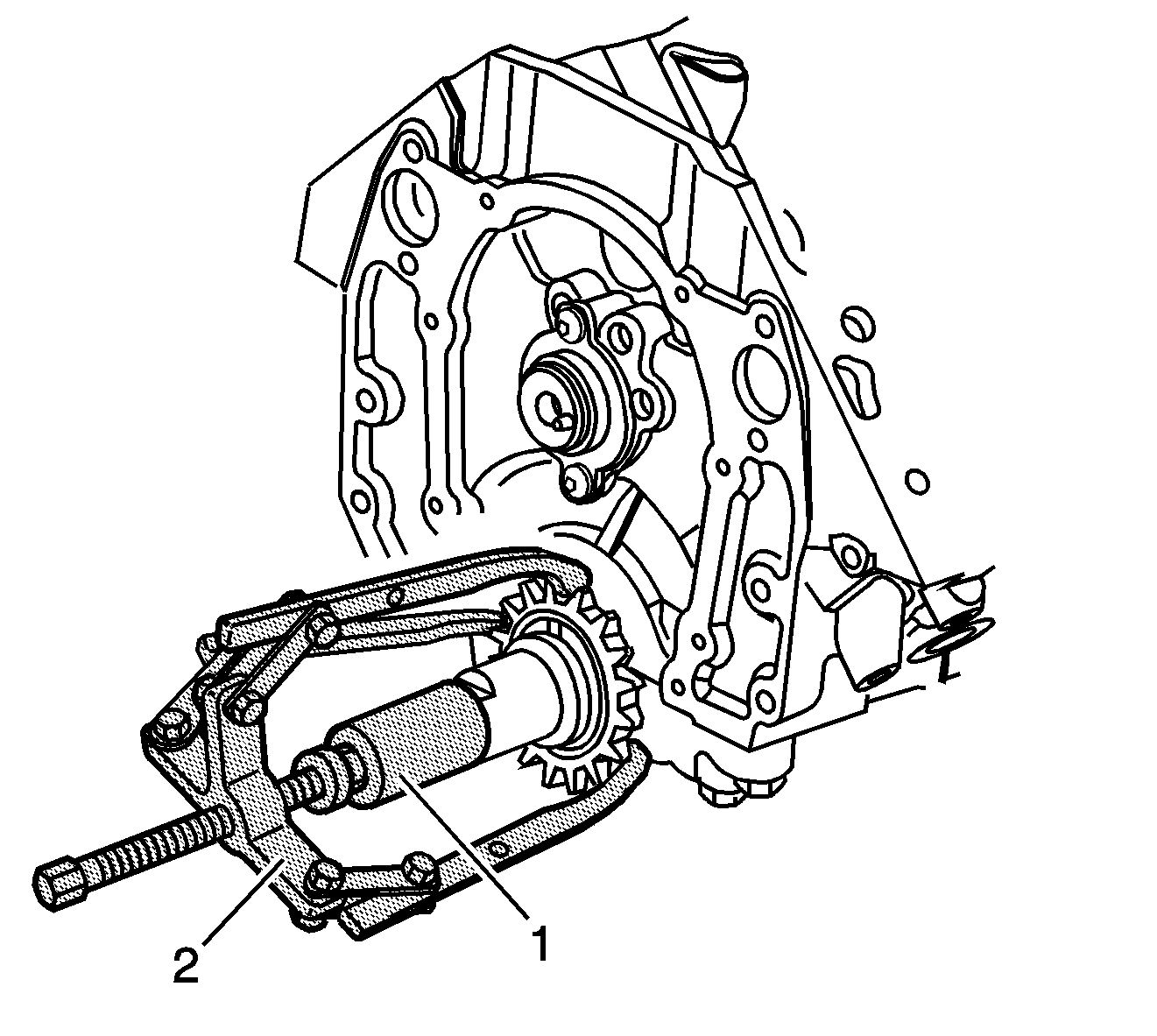

    7. Fig 2: Removing Crankshaft Sprocket Using J 42846
    GM639535Courtesy of GENERAL MOTORS CORP.
  7. Clean and inspect the timing chain and sprockets. Refer to Timing Chain and Sprockets Cleaning and Inspection .
