Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  2. Disconnect the oil level sensor electrical connector (4).

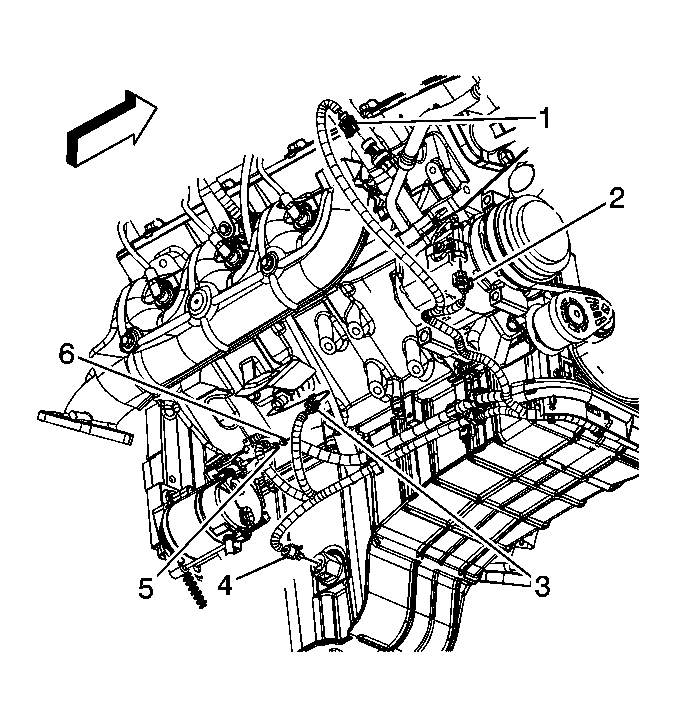

    3. Fig 1: View Of Oil Level Sensor Electrical Connector
    GM1236370Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level sensor from the oil pan.
    4. Fig 2: View Of Oil Level Sensor
    GM750962Courtesy of GENERAL MOTORS CORP.
