Water Pump Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41240 Fan Clutch Remover and Installer

Install the water pump and gaskets.

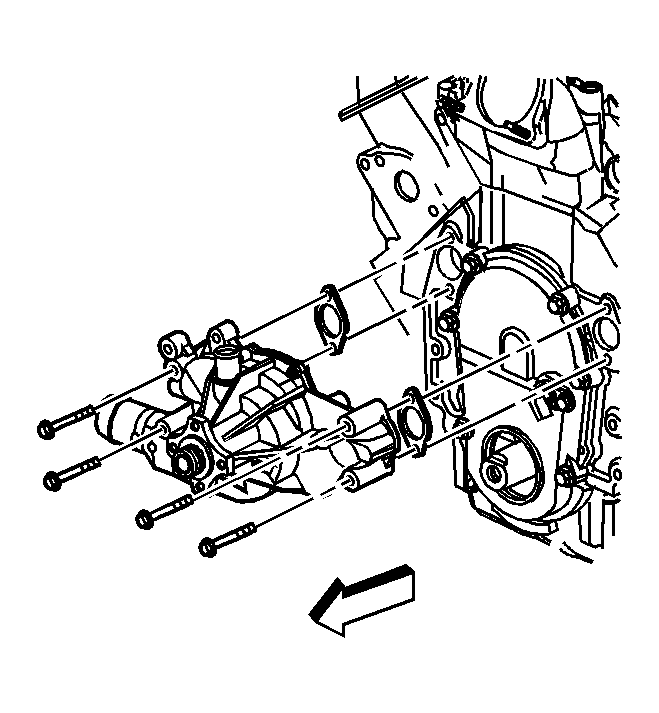

Fig 1: View Of Water Pump & Gasket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the water pump bolts.
Tighten:
- Tighten the water pump bolts (1-4) a first pass in sequence to 25 N.m (18 lb ft).
- Tighten the water pump bolts (1-4) a final pass in sequence to 50 N.m (37 lb ft).

Fig 2: View Of Water Pump Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

Install the water pump pulley (303) and bolts (302).

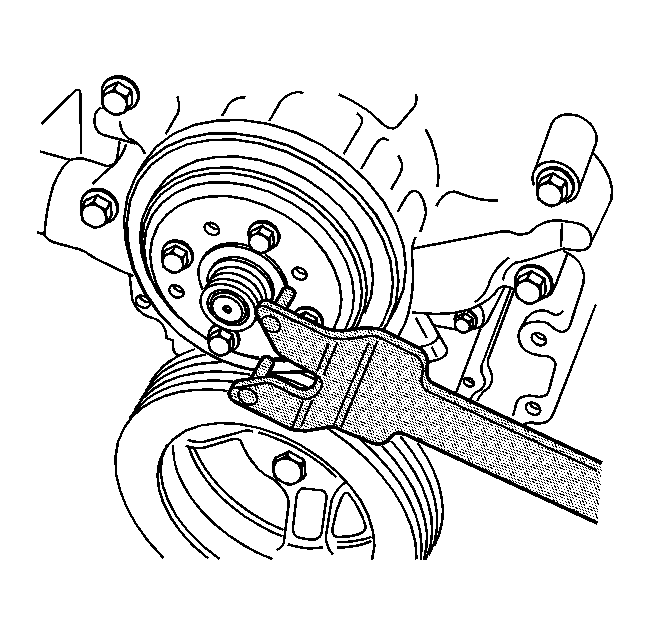

Fig 3: View Of Water Pump Pulley & Bolts

Courtesy of GENERAL MOTORS CORP.

Use the J 41240 in order to retain the water pump pulley.
Tighten: Tighten the water pump pulley bolts to 25 N.m (18 lb ft).

Fig 4: View Of J 41240

Courtesy of GENERAL MOTORS CORP.
