Valve Lifter Removal

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3049-A Valve Lifter Remover

IMPORTANT: Mark, sort, or organize the valve lifters and guides for return to their original location during assembly.

Remove the valve lifter guide retainer bolts and retainer.

Fig 1: View Of Valve Lifter Guide Retainer & Bolts

Courtesy of GENERAL MOTORS CORP.

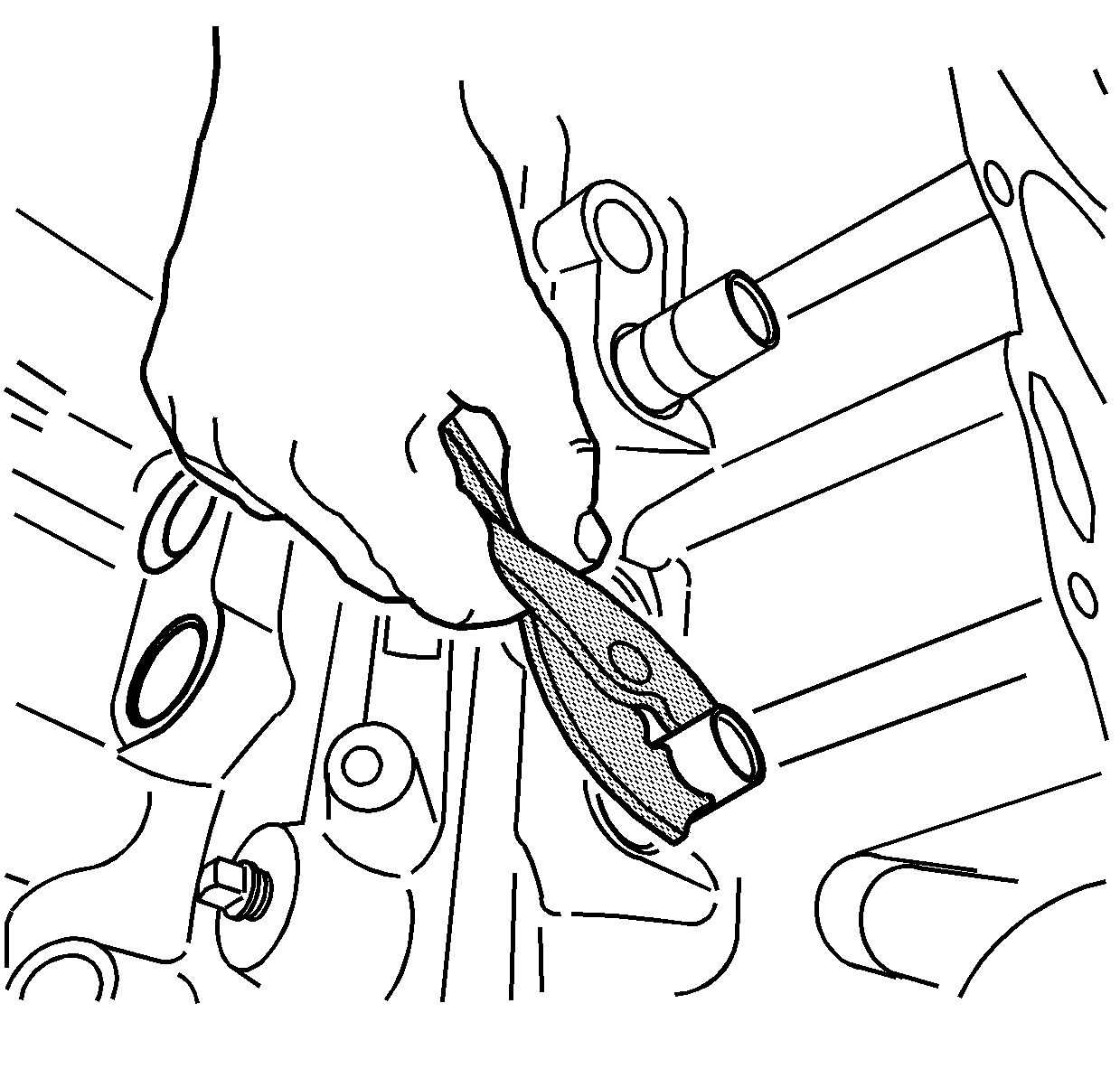

Remove the valve lifter guides.

IMPORTANT: Place the valve lifters in the organizer rack or tag them in a way to ensure they can be returned to the valve lifter bore from which they were removed.

Remove the valve lifters.

Fig 2: View Of Valve Lifters

Courtesy of GENERAL MOTORS CORP.

Some valve lifters may be stuck in their bore due to gum or varnish deposits. These valve lifters can be removed using J 3049-A .

Fig 3: Removing Valve Lifter Using J 3049-A

Courtesy of GENERAL MOTORS CORP.
