Engine Front Cover Removal

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: This component is initially installed using a self-tapping bolt(s). Care should be taken when removing and/or installing the self-tapping bolt(s). Failure to use care when removing and/or installing the self-tapping bolt(s) can lead to damage and unnecessary replacement of the self-tapping bolt(s) and/or the component the self-tapping bolt(s) is threaded into.
  1. Remove the camshaft position (CMP) sensor bolt.
  2. Remove the CMP sensor.
    3. Fig 1: View Of CMP Sensor
    GM470803Courtesy of GENERAL MOTORS CORP.
  3. Inspect the CMP sensor O-ring for cuts, cracks, tears or damage. Replace the O-ring as required.
  4. Remove the engine front cover bolts (521).
  5. Remove the engine front cover (522).
    6. IMPORTANT: The engine front cover gasket is reusable.
  6. Remove the engine front cover gasket (523).
  7. Remove the crankshaft front oil seal (125) from the engine front cover.

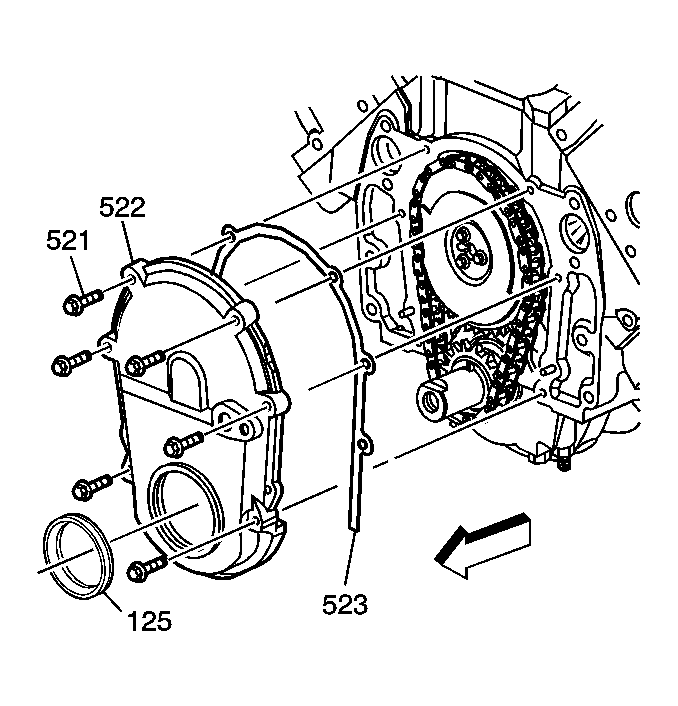

    8. Fig 2: View Of Engine Front Cover & Components
    GM1309997Courtesy of GENERAL MOTORS CORP.
