Engine Flywheel Installation (Manual Transmission)

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine flywheel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the engine flywheel bolts.
Tighten the fasteners following a criss-cross pattern.

Tighten:
- Tighten the engine flywheel bolts a first pass to 40 N.m (30 lb ft).
- Tighten the engine flywheel bolts a second pass to 80 N.m (59 lb ft).
- Tighten the engine flywheel bolts a final pass to 100 N.m (74 lb ft).

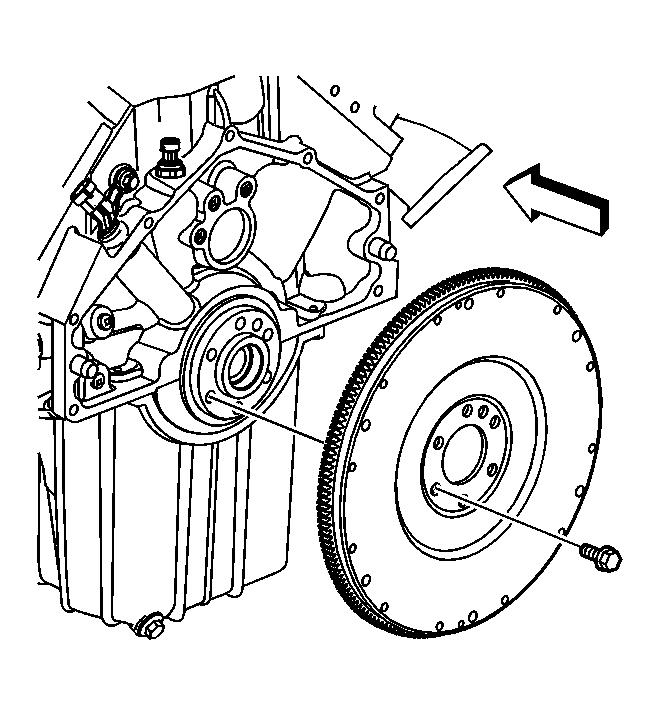

Fig 1: Engine Flywheel & Bolt (Manual)

Courtesy of GENERAL MOTORS CORP.
