Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove and discard the cylinder head bolts (227, 228, 229).

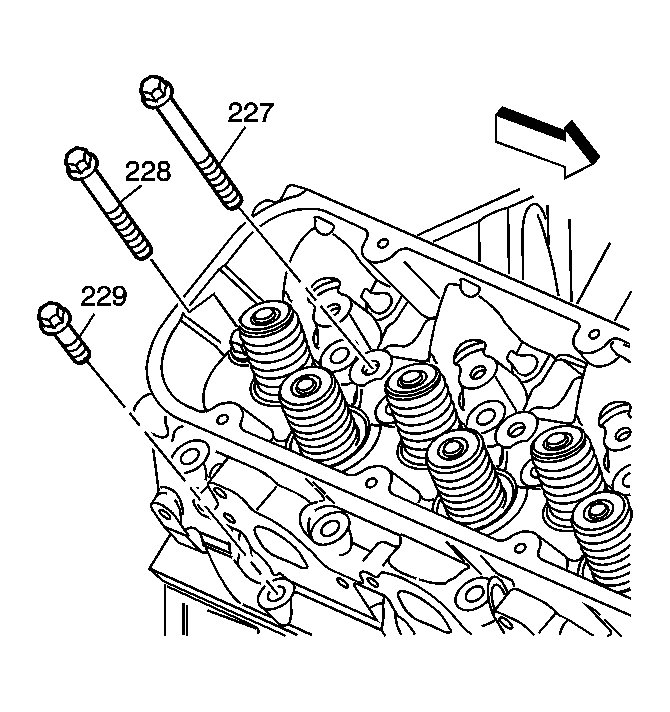

Fig 1: View Of Right Cylinder Head Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: After removal, place the cylinder head on two wood blocks to prevent damage to the sealing surfaces.

Remove the cylinder head.

Fig 2: View Of Right Cylinder Head And Alignment Pin

Courtesy of GENERAL MOTORS CORP.

Remove the cylinder head gasket.
Discard the cylinder head gasket.

Fig 3: View Of Right Cylinder Head Gasket And Alignment Pins

Courtesy of GENERAL MOTORS CORP.
