Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake manifold cover.
Tighten the intake manifold cover bolt (2) until snug.

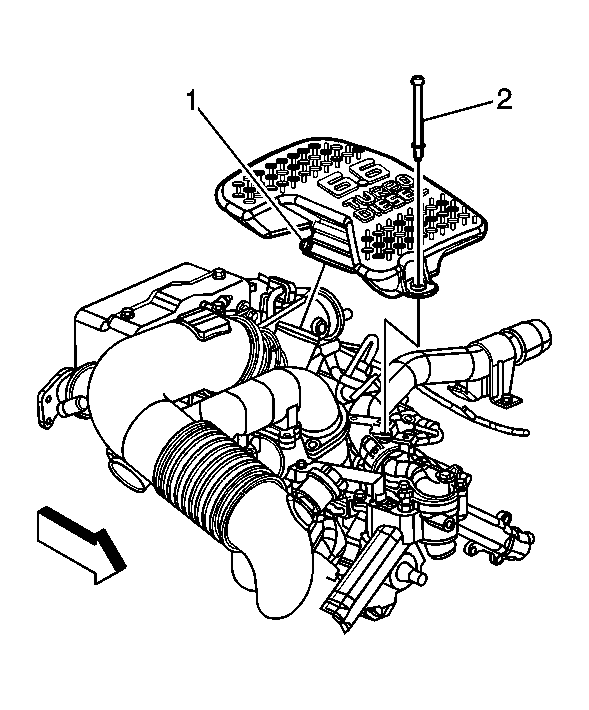

Fig 1: View Of Intake Manifold Cover

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the intake manifold cover clamp (1) at the resonator.
Tighten: Tighten the clamp to 6 N.m (53 lb in).
