Installation Procedure
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

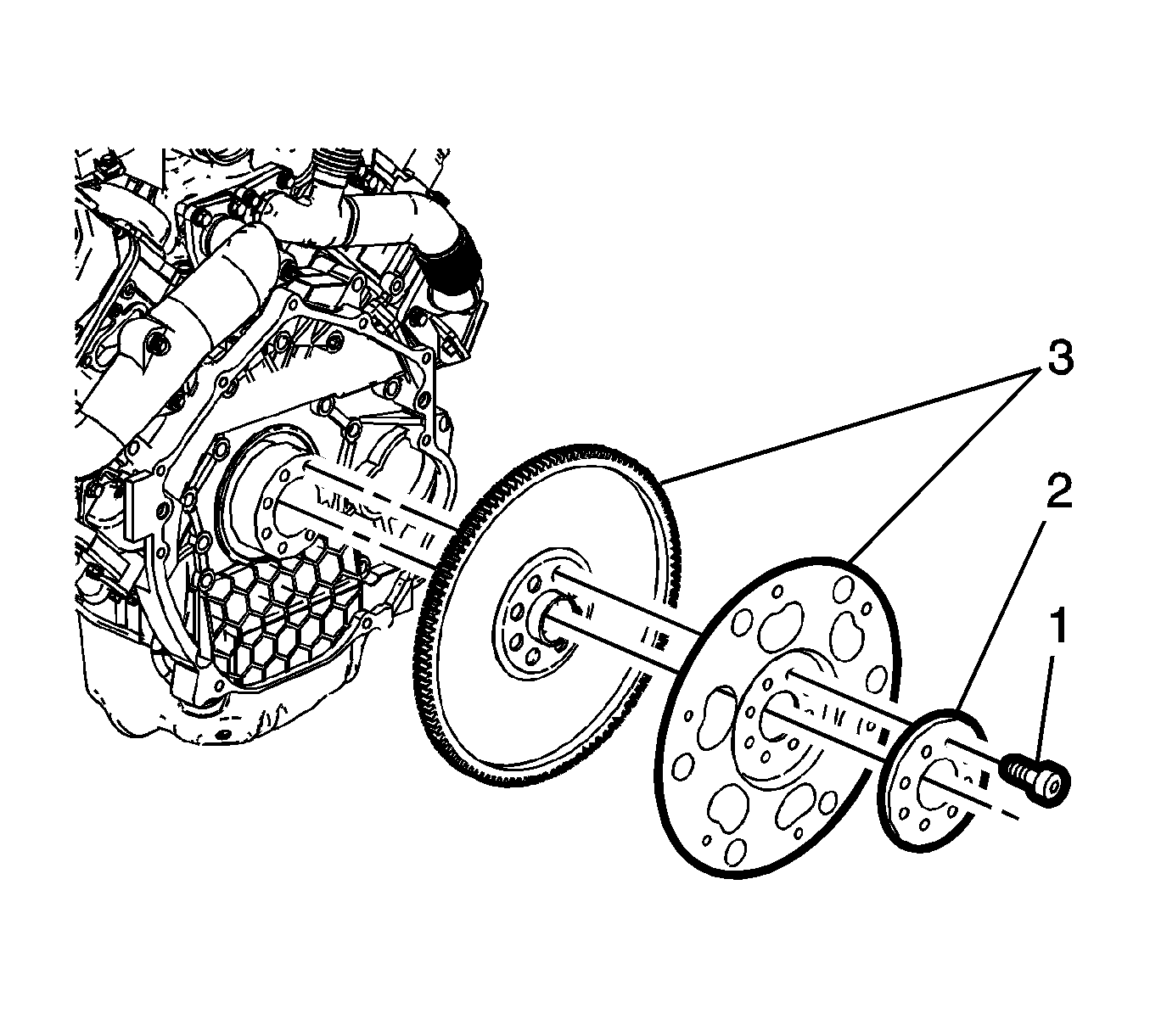

- Install the flywheel.
- Install the flywheel washer with the beveled side facing the engine.NOTE: Refer to Fastener Notice in Cautions and Notices.
- Install NEW flywheel bolts.

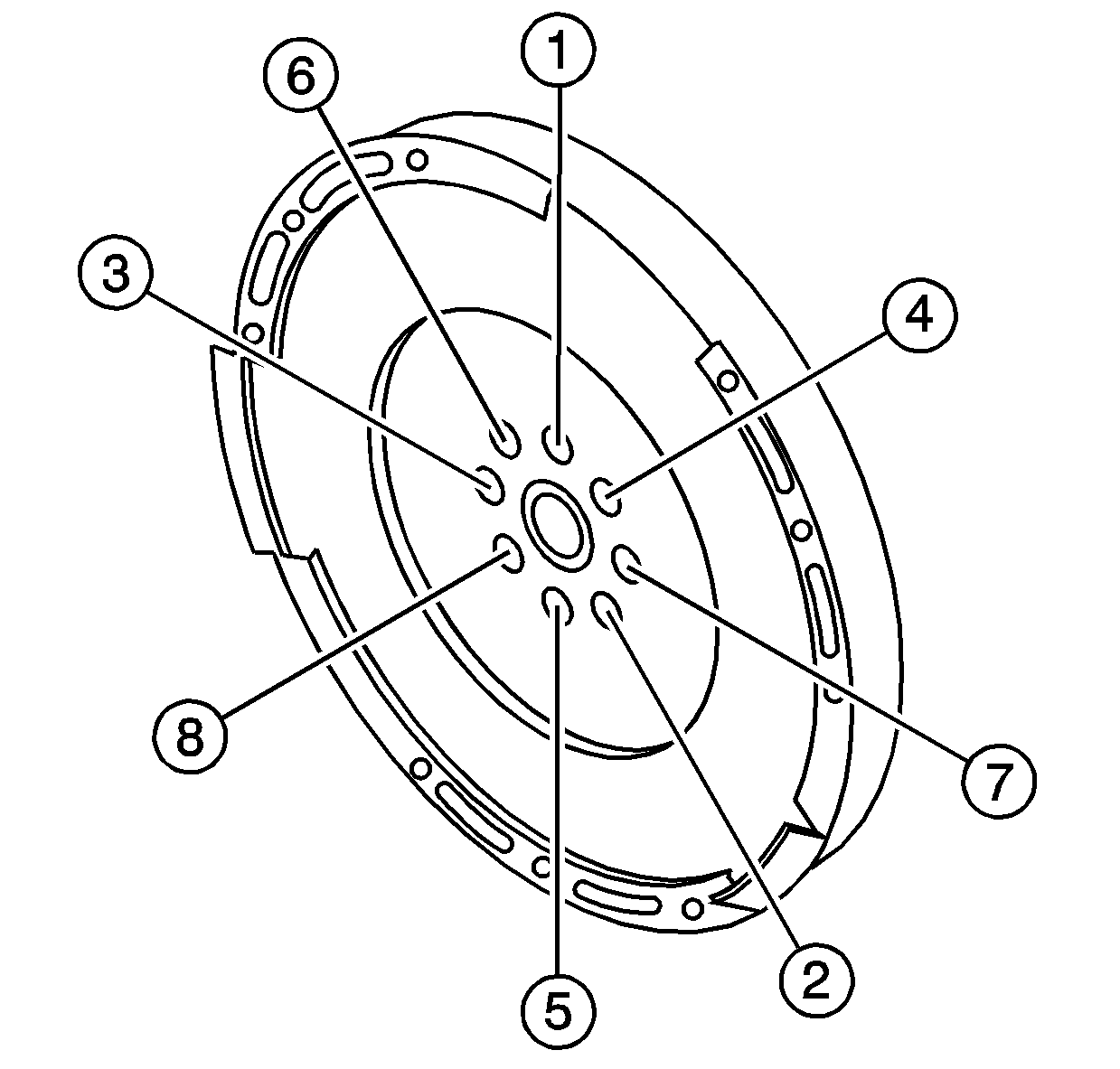

- Tighten the flywheel bolts in the proper sequence.
Tighten:
- Tighten the bolts a first pass to 79 N.m (58 lb ft).
- Tighten the bolts a second pass to 60 degrees using J 45059 .
- Tighten the bolts a final pass an additional 60 degrees using J 45059 .

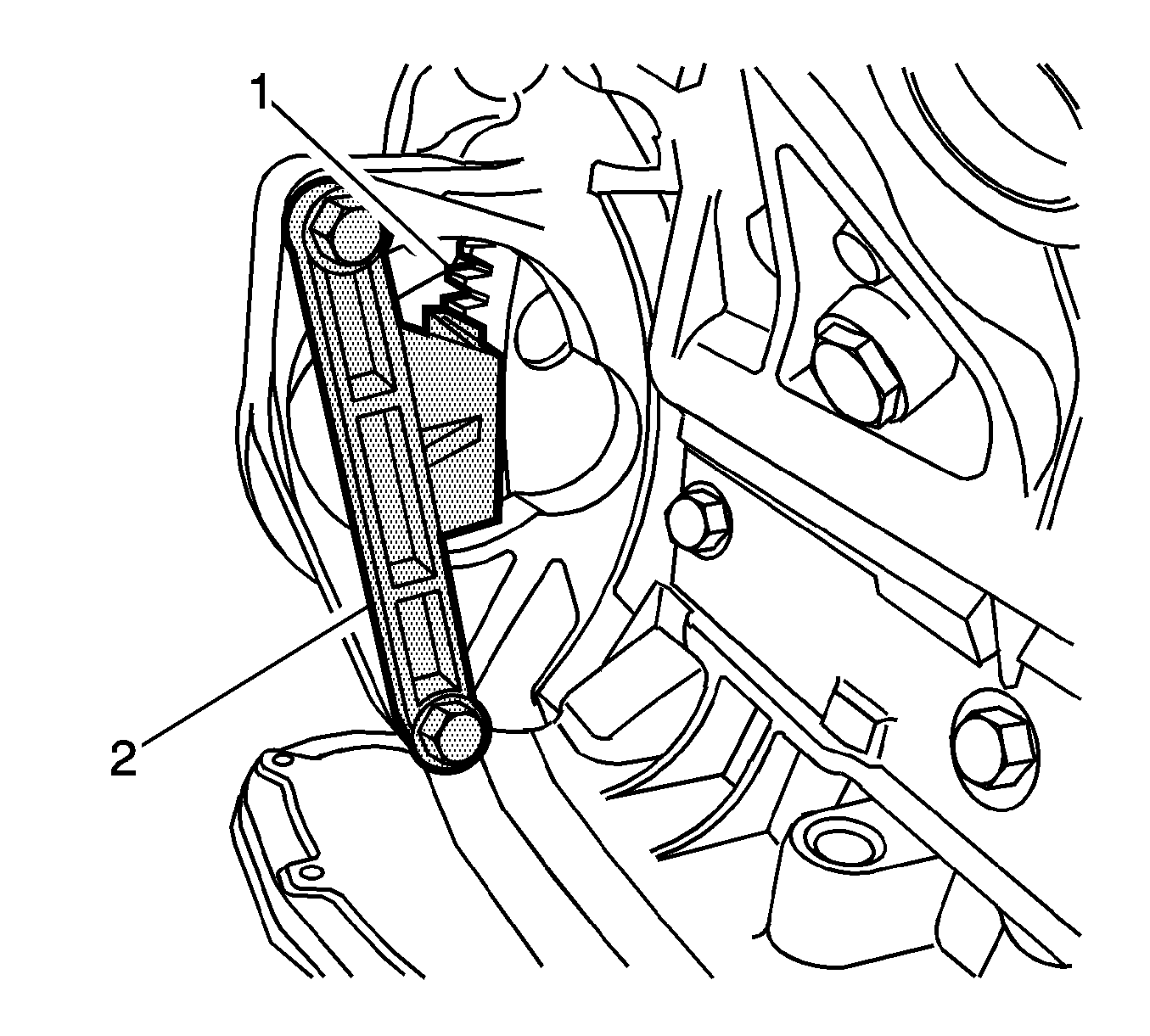

- Remove J 44643 from the flywheel.
- Install the transmission. Refer to Transmission Replacement (With 6.6L Engine) or Transmission Replacement (With 8.1L (L18) Engine) .
IMPORTANT:
When installing the flywheel, ensure that the tapered side of the teeth are facing the starter.
NOTE:
This component uses bolts with a pre-applied molybdenum disulfide coating for thread lubrication. Do not remove the coating or use any additional lubricant. Improperly lubricated threads will adversely affect the bolt torque and clamp load. Improper bolt torque and clamp load can lead to engine damage.
