Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  2. Install J 44644  to the crankshaft front oil seal. The jaws of the J 44644  fit into the inner sleeve.
  3. Using J 44644  , remove the crankshaft front oil seal.

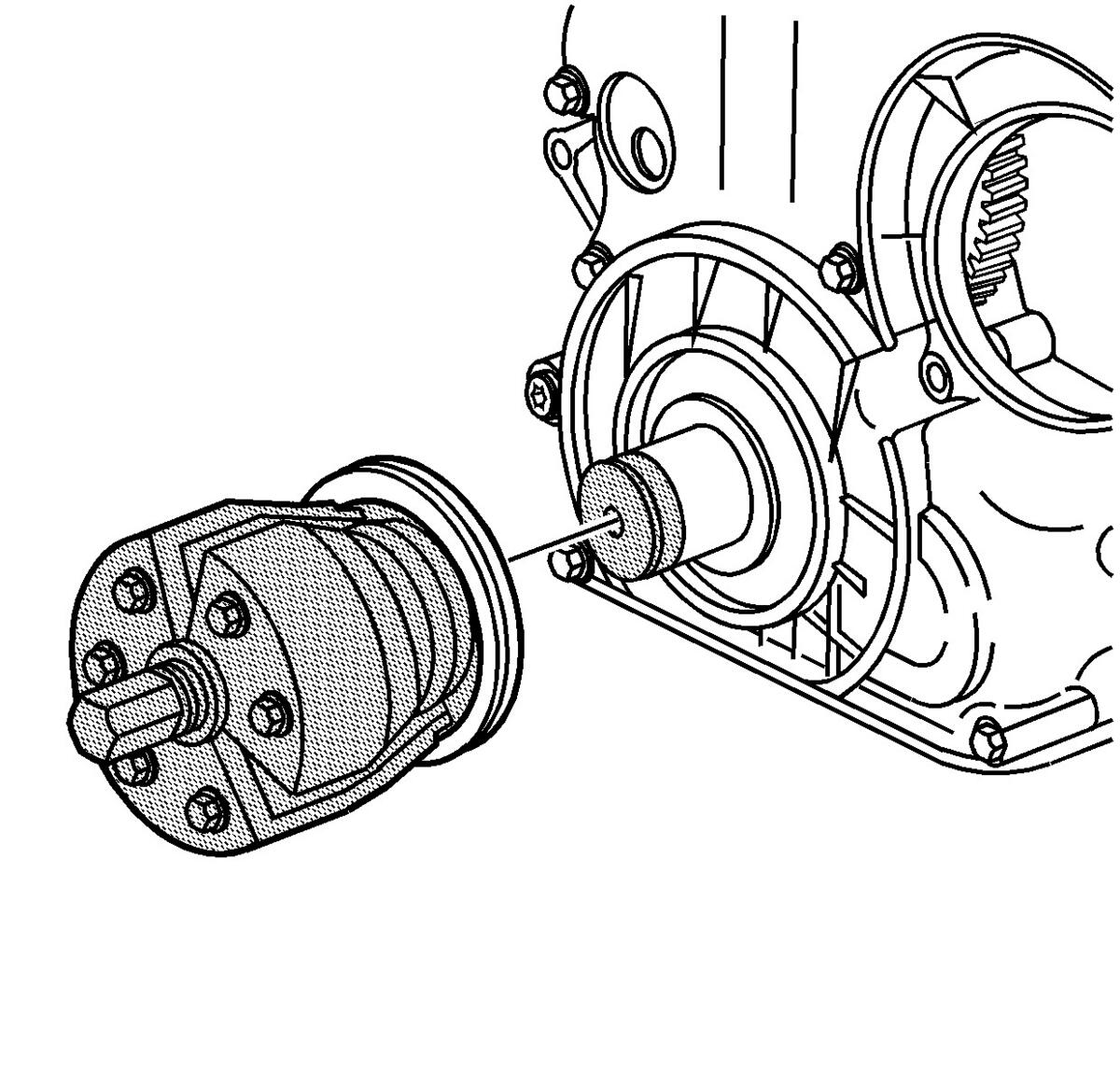

    4. Fig 1: Removing Crankshaft Front Oil Seal Using J 44644
    GM660534Courtesy of GENERAL MOTORS CORP.
