Piston and Connecting Rod Disassemble

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 43654 Piston Pin Retainer Clip Remover/Installer

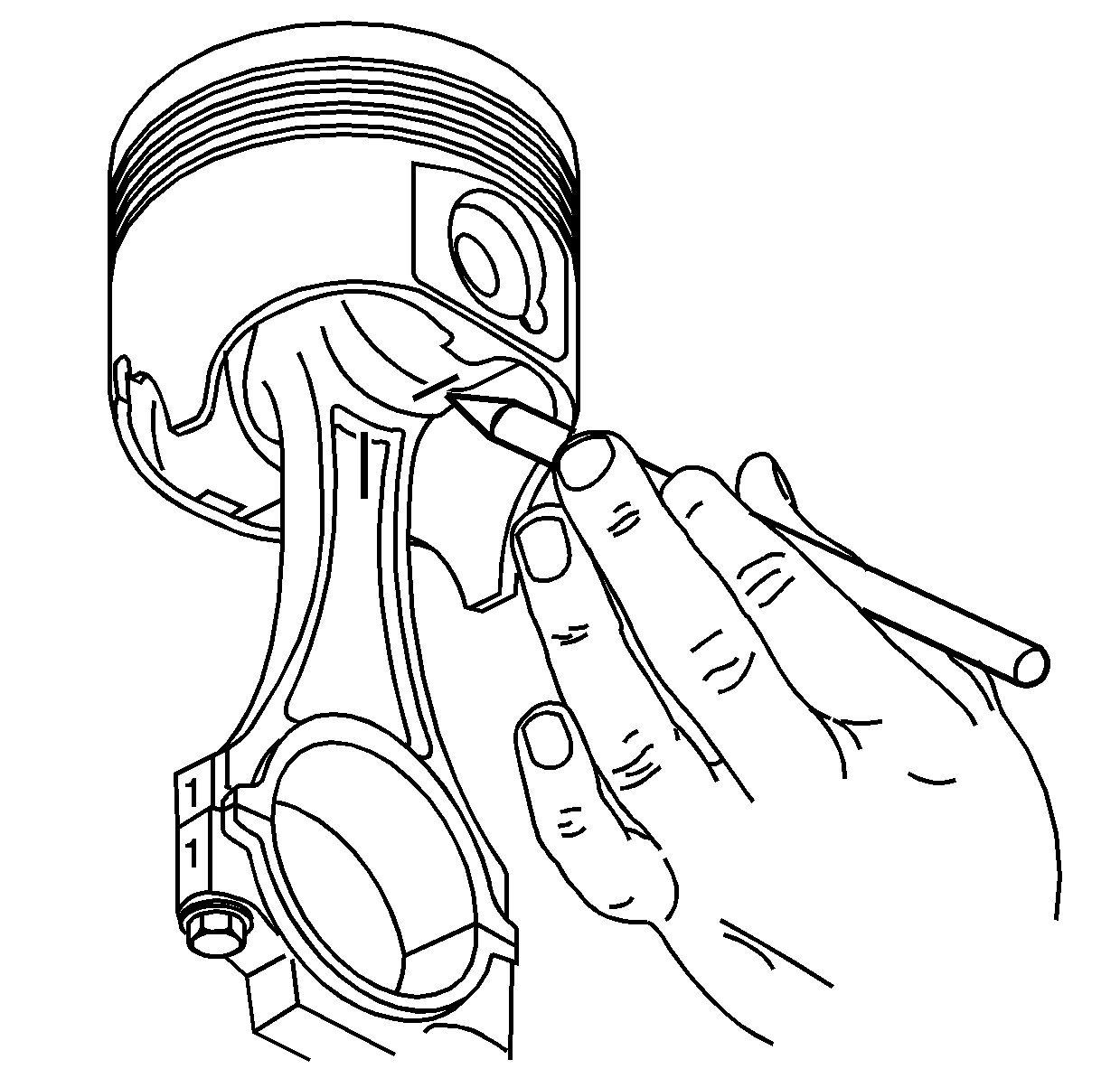

Mark orientation of the piston to the connecting rod.

Fig 1: Marking Orientation Of Piston To Connecting Rod

Courtesy of GENERAL MOTORS CORP.

Remove the piston rings using a piston ring expander.

Fig 2: Removing & Installing Piston Rings Using Piston Ring Expander

Courtesy of GENERAL MOTORS CORP.

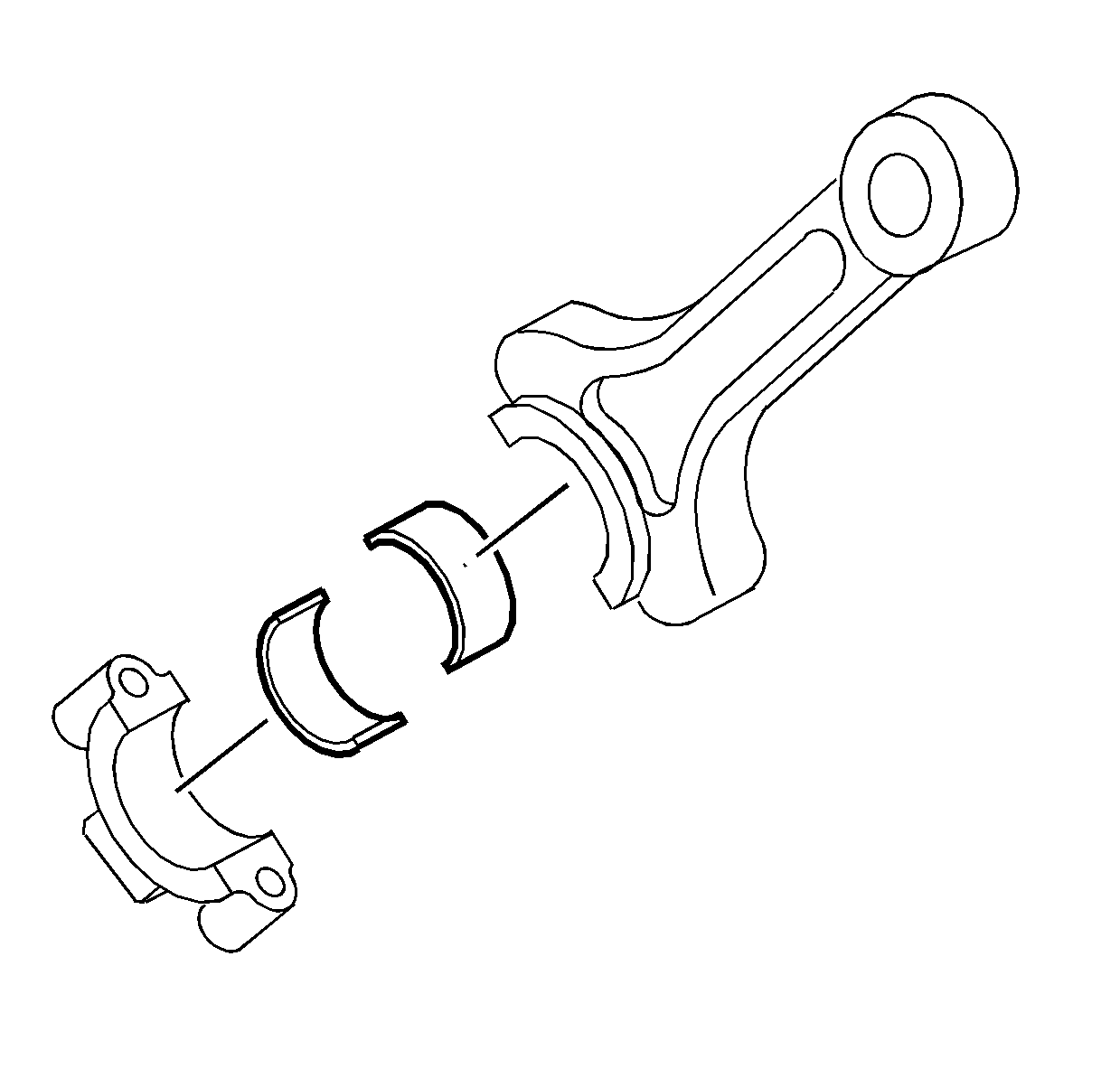

Remove the connecting rod bearing inserts.

Fig 3: View Of Connecting Rod Bearing Inserts

Courtesy of GENERAL MOTORS CORP.

Use J 43654 to remove the piston pin retainers.

Fig 4: View Of Piston Pin Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Remove the piston pin. The pin is a full-floating style and should slide from the piston.
Remove the piston from the connecting rod.
