Piston Oil Cooling Nozzle Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the piston oil cooling nozzle.

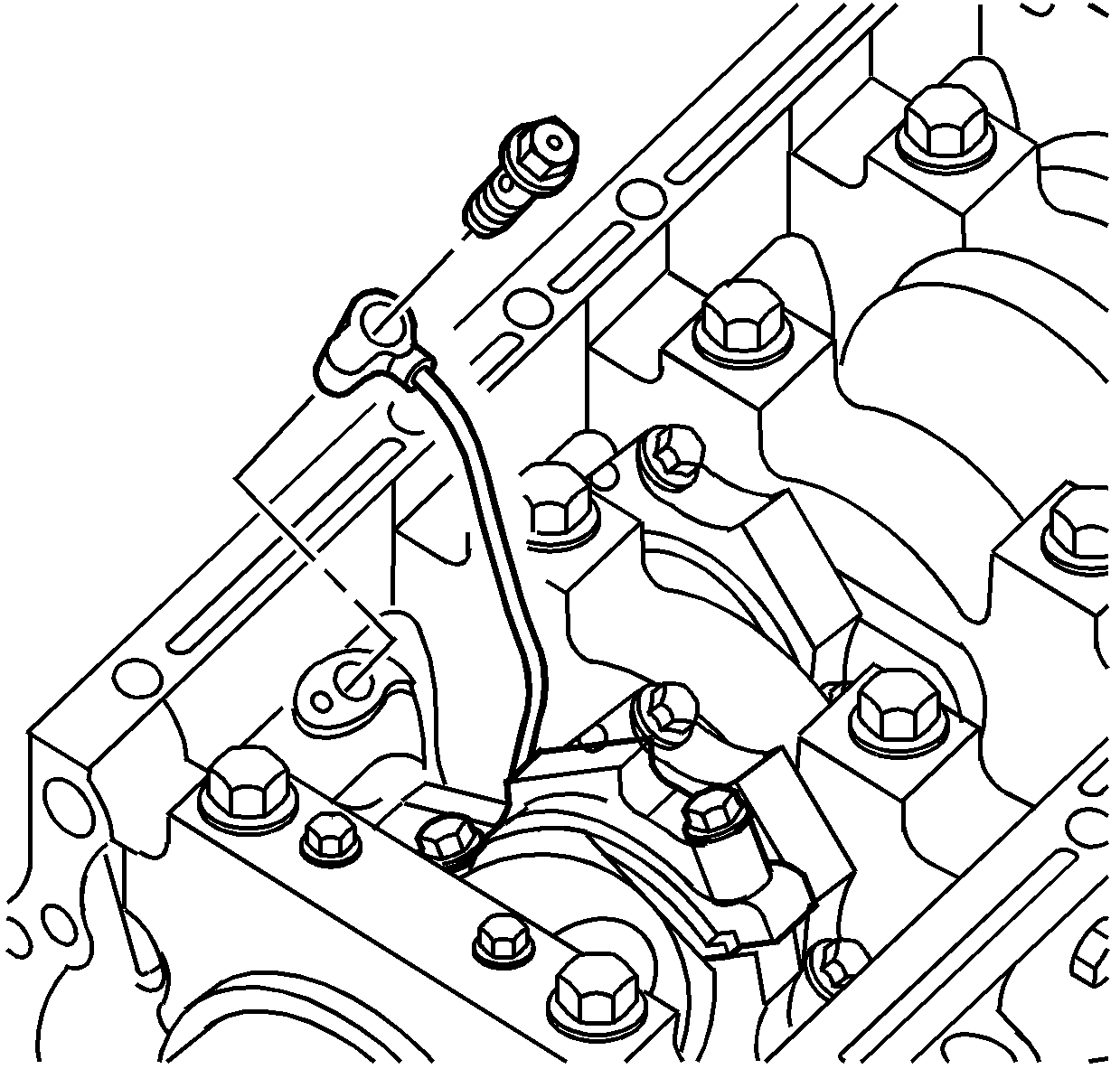

    2. Fig 1: View Of Piston Oil Cooling Nozzle
    GM660543Courtesy of GENERAL MOTORS CORP.
    NOTE: The piston oil cooling nozzle must be aligned to direct oil towards the oil inlet hole on the bottom of the piston. Improper alignment of the piston oil cooling nozzle will allow insufficient oil lubrication to the piston and cause severe engine damage.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the piston oil cooling nozzle bolt.

    Tighten:  Tighten the piston oil cooling nozzle bolts to 21 N.m (15 lb ft).

    3. Fig 2: View Of Piston Oil Cooling Nozzle Bolt
    GM663810Courtesy of GENERAL MOTORS CORP.
