Oil Pump Pipe and Screen Assembly Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pump pipe and screen gasket.
Install the oil pump pipe and screen.

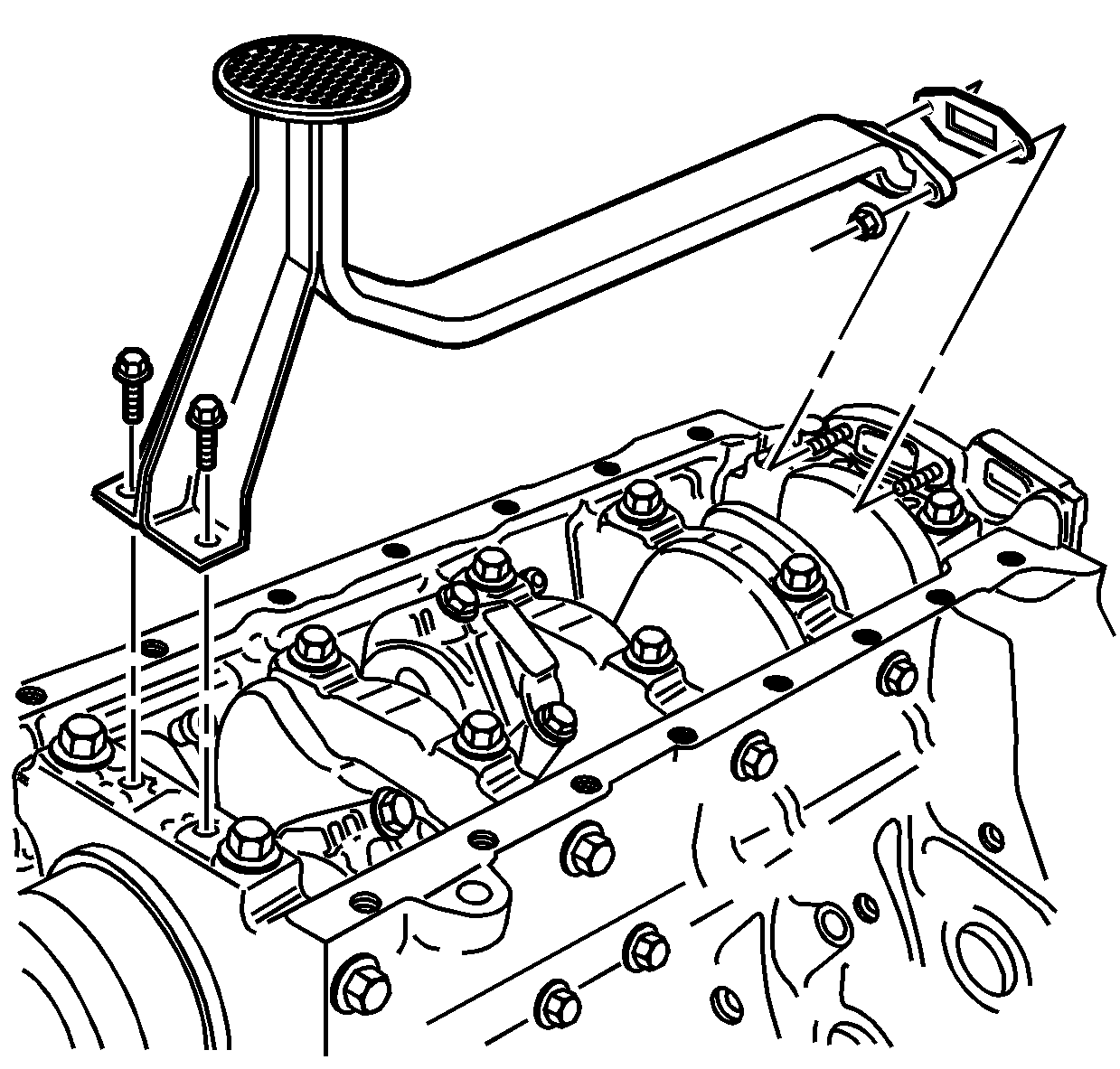

Fig 1: View Of Oil Pump Pipe & Screen Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the oil pump pipe and screen assembly bolts and nuts.
Tighten:
- Tighten the oil pump pipe and screen assembly bolts to 25 N.m (18 lb ft).
- Tighten the oil pump pipe and screen assembly nuts to 25 N.m (18 lb ft).
