Fuel Injection Control Module Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel injection control module bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fuel injection control module bracket bolts.

    Tighten:  Tighten the fuel injection control module bracket bolts to 21 N.m (15 lb ft).

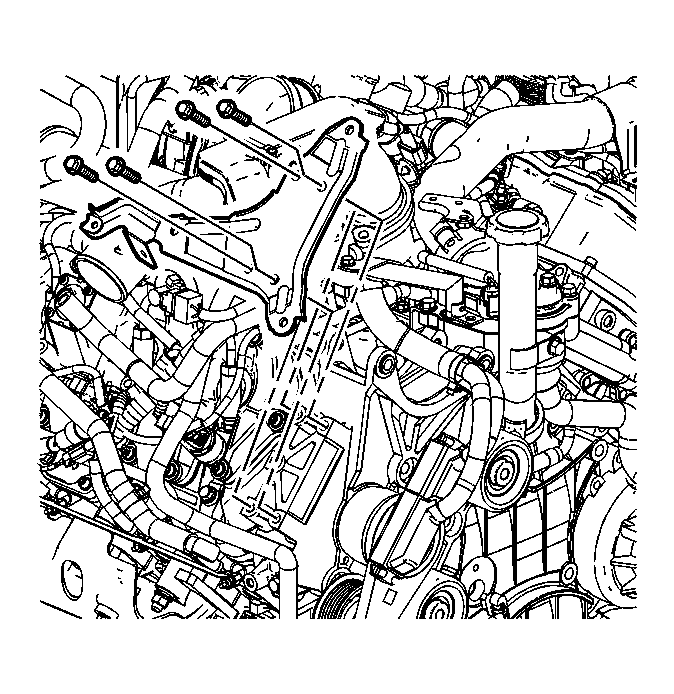

    3. Fig 1: View Of Fuel Injection Control Module Bracket
    GM1334906Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel injection control module with mounting insulators.
  4. Install the fuel injection control module bolts.

    Tighten:  Tighten the fuel injection control module bolts to 20 N.m (14 lb ft).

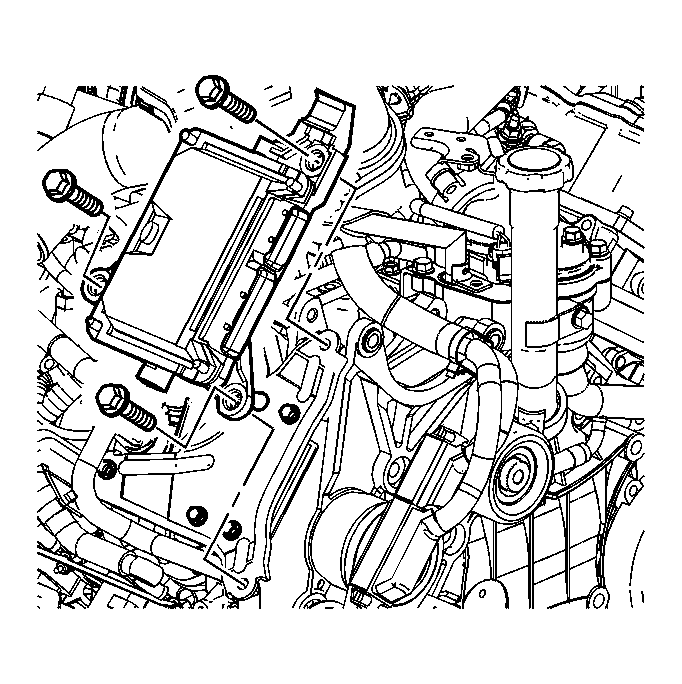

    5. Fig 2: View Of Fuel Injection Control Module Bolts
    GM1334885Courtesy of GENERAL MOTORS CORP.
  5. Install the eye bolts and washers to the cooling hoses.

    Lubricate the washers with diesel fuel before installing.

    Tighten:  Tighten the eye bolts to 34 N.m (25 lb ft).

    6. Fig 3: View Of Cooling Hoses, Eye Bolts & Washers
    GM1334883Courtesy of GENERAL MOTORS CORP.
  6. Connect the main electrical connections.
    7. Fig 4: View Of Fuel Injection Control Module Electrical Connectors
    GM1334881Courtesy of GENERAL MOTORS CORP.
