Engine Removal from Stand

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36857 Engine Lift Bracket

Bolt J 36857 to the ends of the cylinder heads.

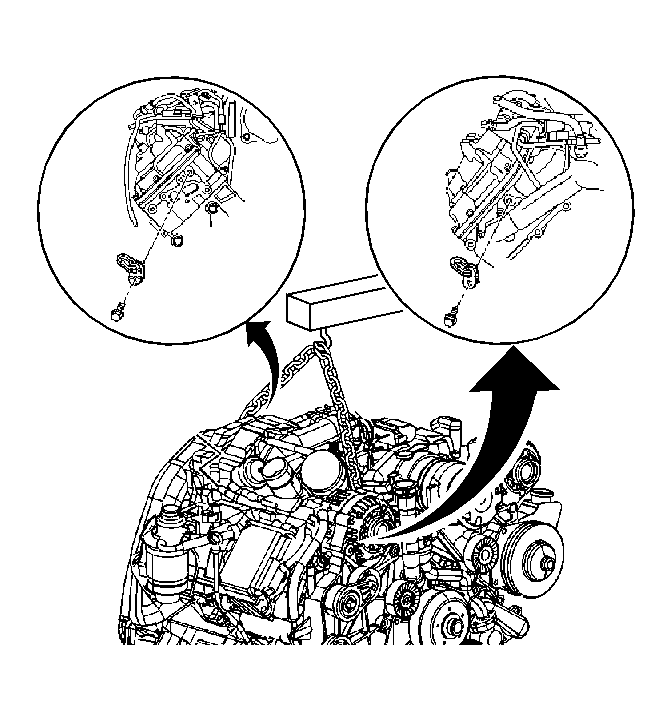

Fig 1: View Of J 36857 Installed On Cylinder Heads

Courtesy of GENERAL MOTORS CORP.

Lift the engine and the engine stand with a suitable hoist.
Remove the engine stand from the engine adapter.

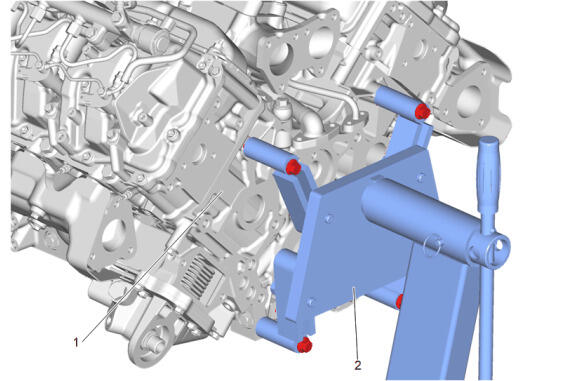

Fig 2: Mounting Engine Block To Suitable Engine Stand

Courtesy of GENERAL MOTORS CORP.

Lower the engine to the floor. Support the engine with blocks.
Remove the engine adapter.
