Engine Flywheel Cleaning and Inspection

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the flywheel assembly.
  2. Inspect the flywheel assembly for cracks or excessive wear on the teeth.
  3. Replace the flywheel assembly if any concerns exist.

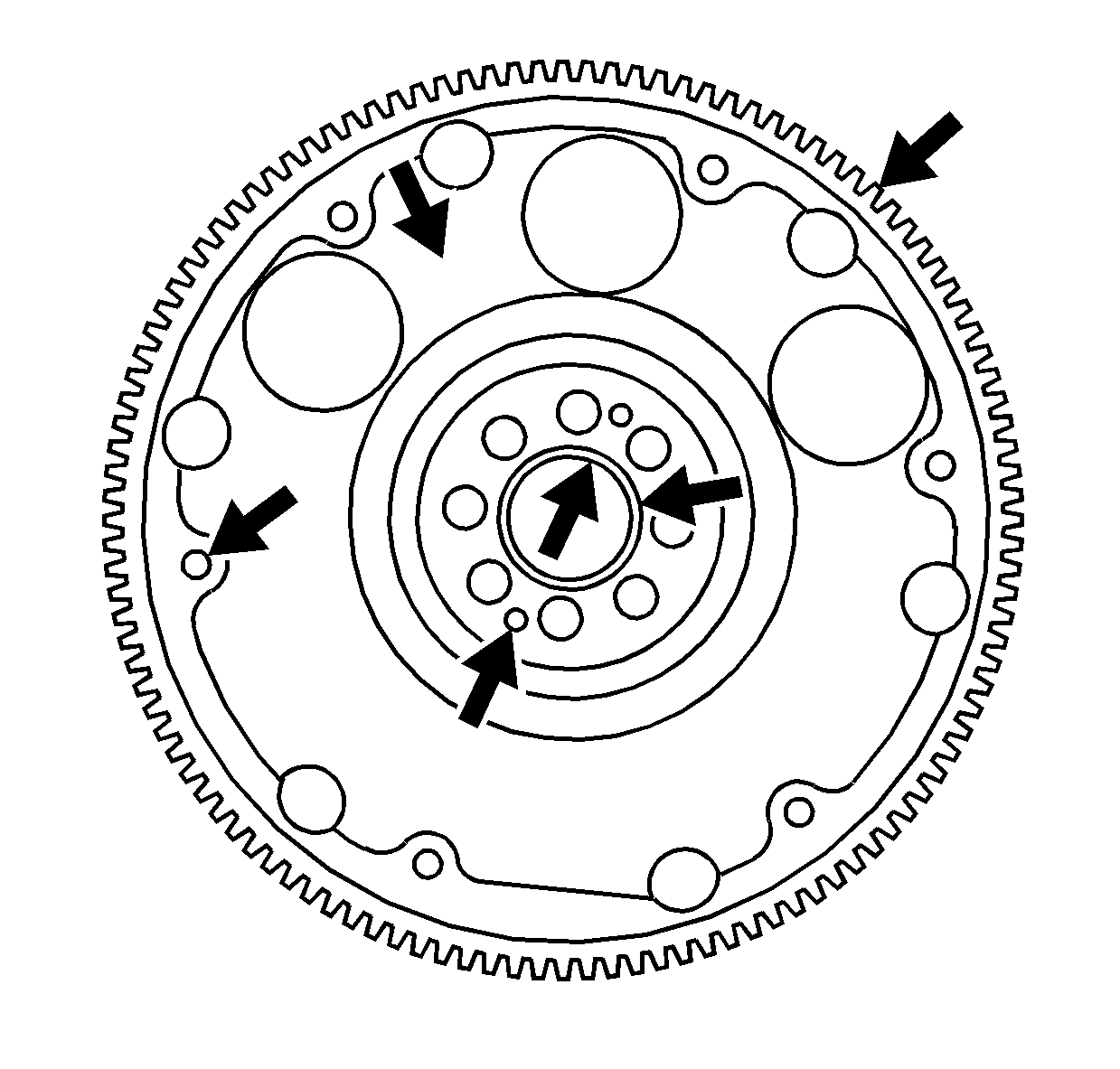

    4. Fig 1: View Of Engine Flywheel Inspection Areas
    GM663136Courtesy of GENERAL MOTORS CORP.
