Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Mark, sort, and organize all the components for assembly.
  1. Remove the rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left  or Valve Rocker Arm Cover Replacement - Right .
  2. Remove the rocker arms.

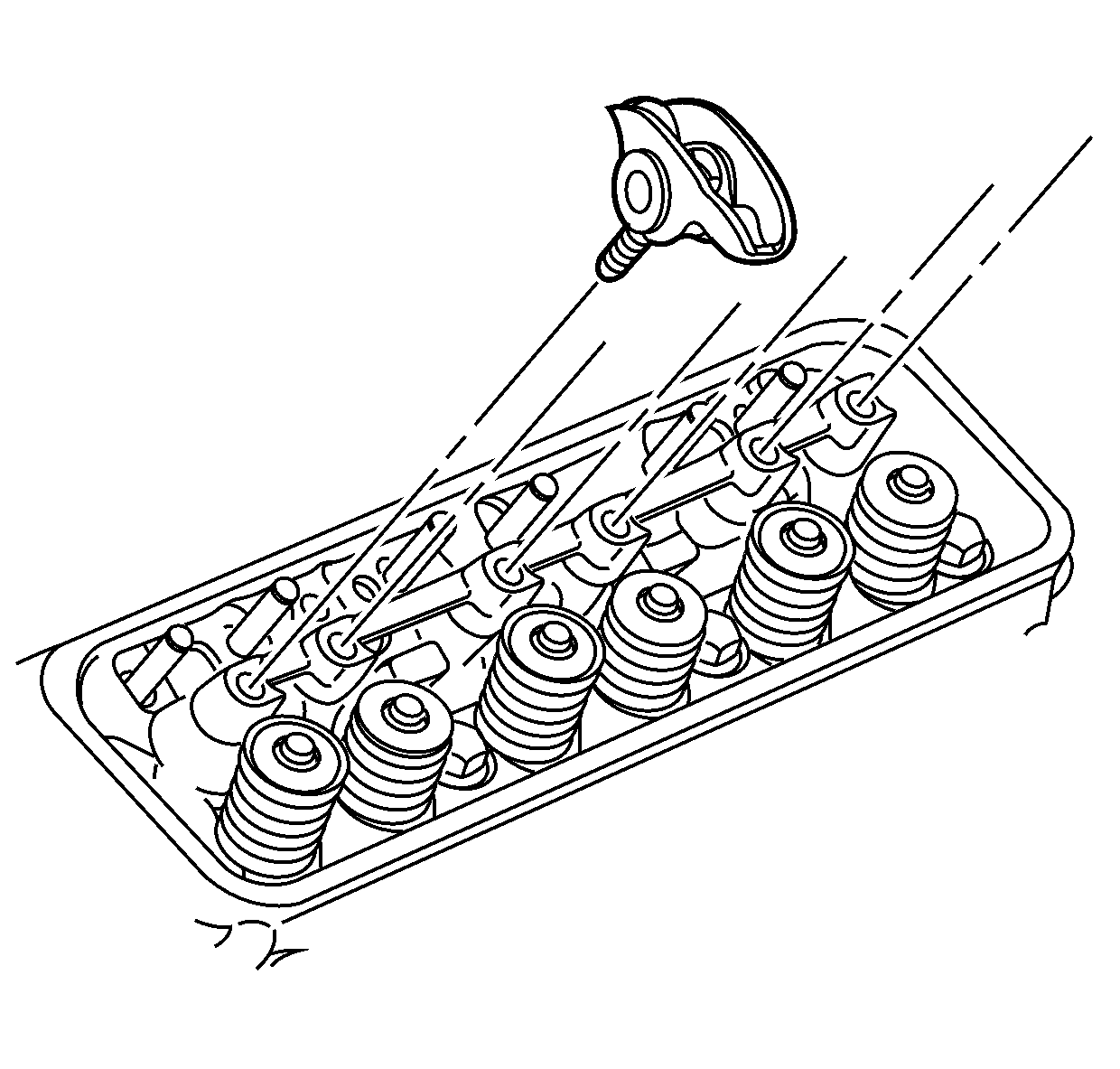

    3. Fig 1: Removing Rocker Arms
    GM480526Courtesy of GENERAL MOTORS CORP.
  3. Remove the rocker arm supports.

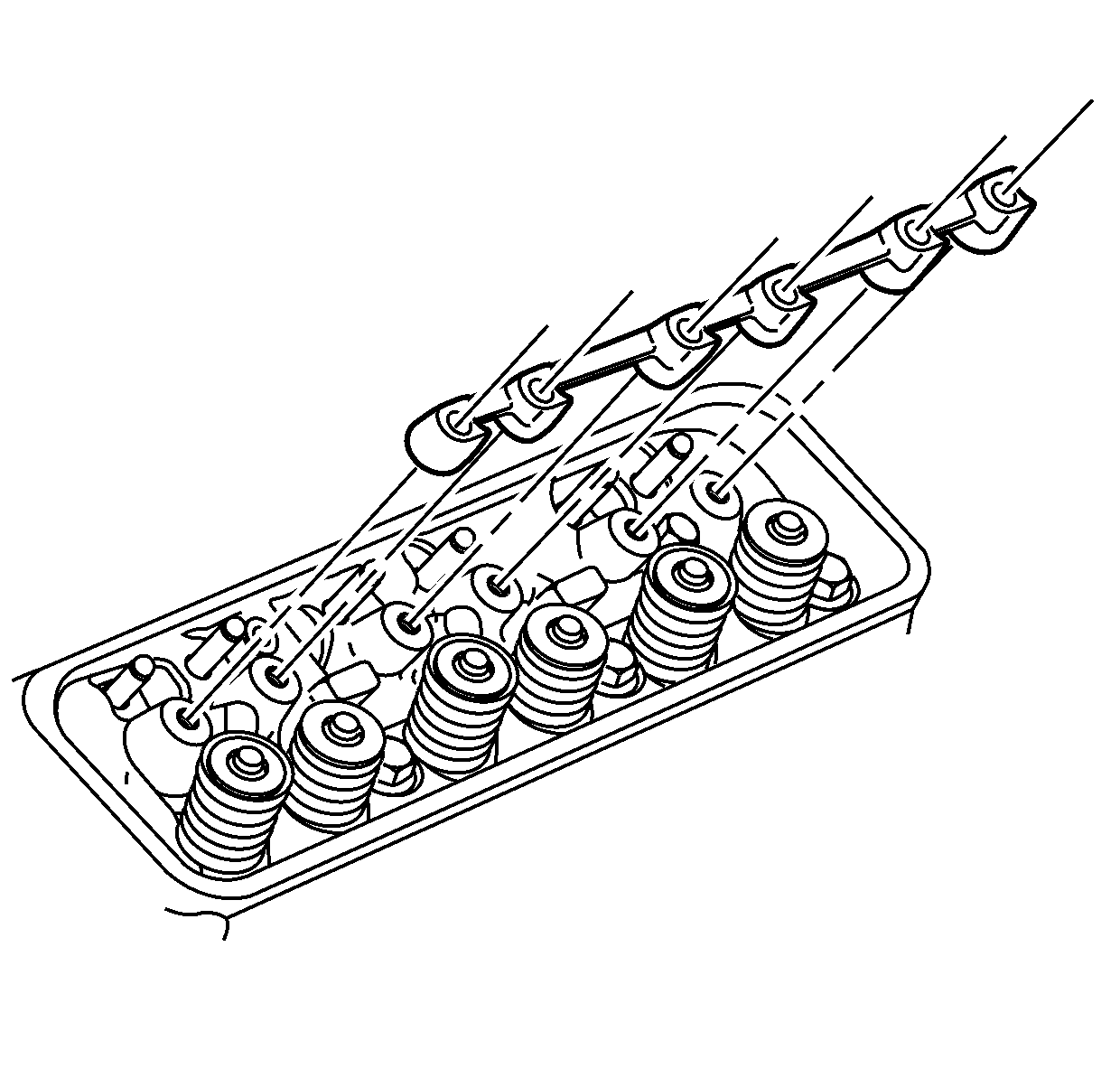

    4. Fig 2: Removing Rocker Arm Supports
    GM480527Courtesy of GENERAL MOTORS CORP.
  4. Remove the pushrods.
    5. Fig 3: View Of Valve Pushrods
    GM480529Courtesy of GENERAL MOTORS CORP.
  5. Clean and inspect the rocker arms and/or pushrods, if necessary. Refer to Valve Rocker Arm and Push Rods Cleaning and Inspection .
