Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not reuse the rocker cover gasket or the rocker arm cover bolt grommets.
    Fig 1: View Of Rocker Arm Cover And Gasket
    GM328573Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW rocker arm cover gasket to the cover.
  2. Install NEW rocker arm cover bolt grommets to the cover, if necessary.
  3. Install the rocker arm cover.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the rocker arm cover bolts.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

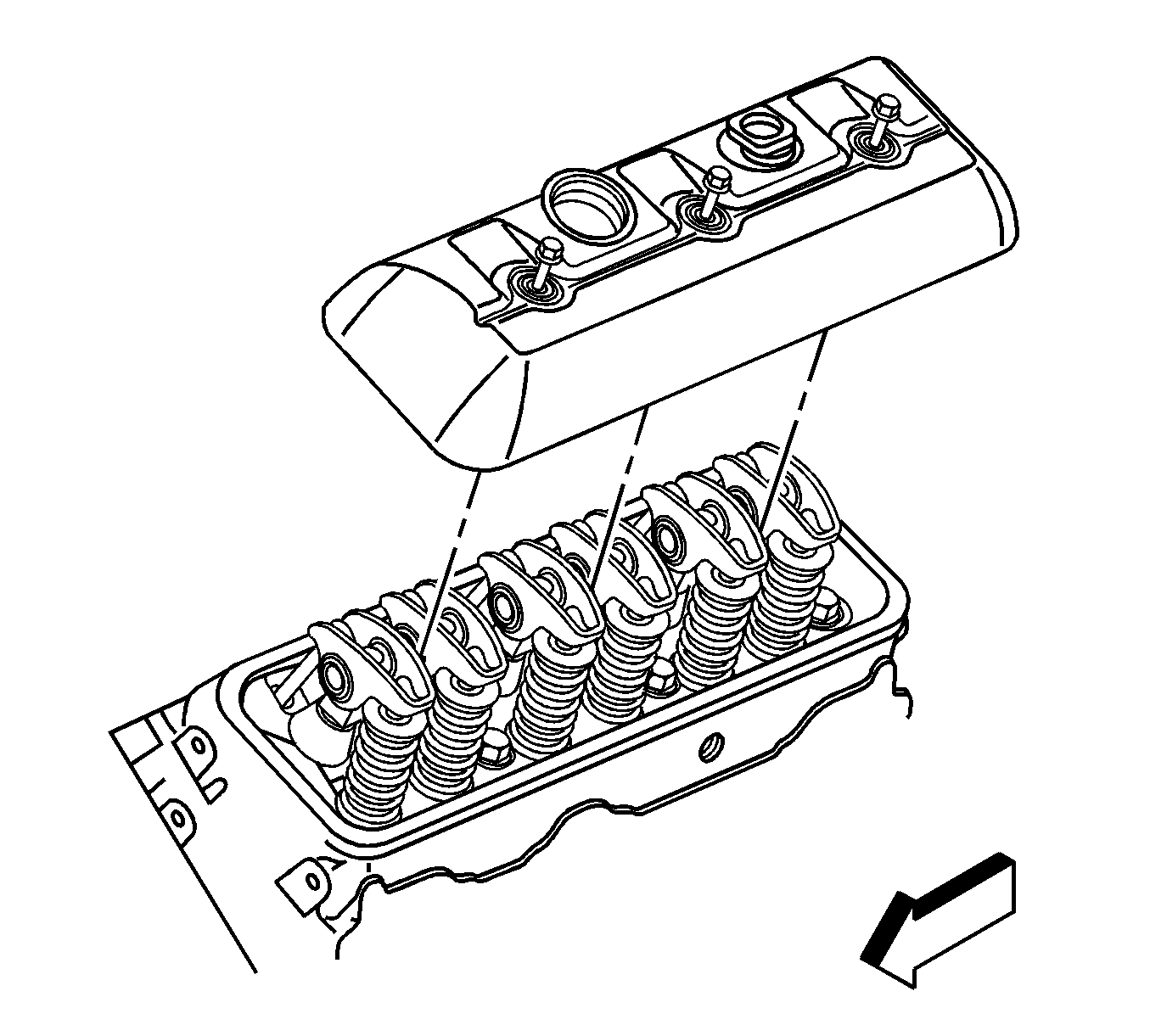

    5. Fig 2: Installing Rocker Arm Cover
    GM869729Courtesy of GENERAL MOTORS CORP.
  5. Install the PCV valve hose to the valve cover and rocker cover.
    6. Fig 3: Installing PCV Valve Hose
    GM869710Courtesy of GENERAL MOTORS CORP.
  6. Connect the power brake booster vacuum hose to the vacuum fitting.
    7. Fig 4: Connecting Power Brake Booster Vacuum Hose
    GM869713Courtesy of GENERAL MOTORS CORP.
  7. Position the engine wiring harness and bracket.
  8. Connect the ECT sensor electrical connector (5).
  9. Install the engine wiring harness clip bolt (4).

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

    10. Fig 5: View Of TP Sensor, IAC Motor, ECT Sensor, Control Port Injector Module & Engine Harness Clip Bolt
    GM782174Courtesy of GENERAL MOTORS CORP.
  10. Install the engine wiring harness bracket.
  11. Install the engine wiring harness bracket nuts.

    Tighten:  Tighten the nuts to 12 N.m (106 lb in).

    12. Fig 6: Installing Engine Wiring Harness Bracket & Nuts
    GM310241Courtesy of GENERAL MOTORS CORP.
