Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

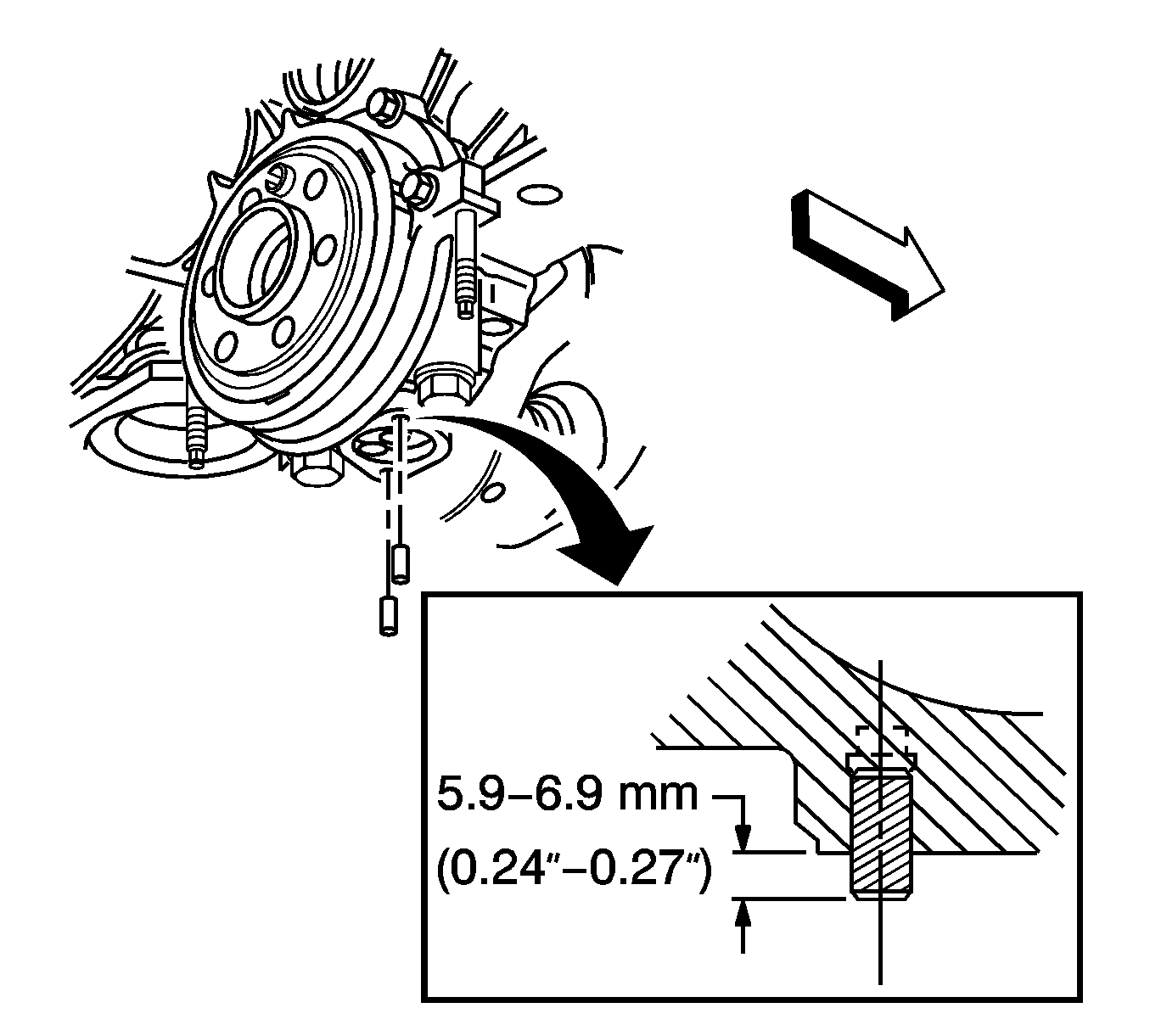

    Fig 1: Oil Pump Locator Pins
    GM869741Courtesy of GENERAL MOTORS CORP.
  1. Inspect for properly installed oil pump locator pins.
    2. IMPORTANT: Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil pump. Position the oil pump onto the locator pins.
  3. Install the oil pump bolt.

    Tighten:  Tighten the bolt to 90 N.m (66 lb ft).

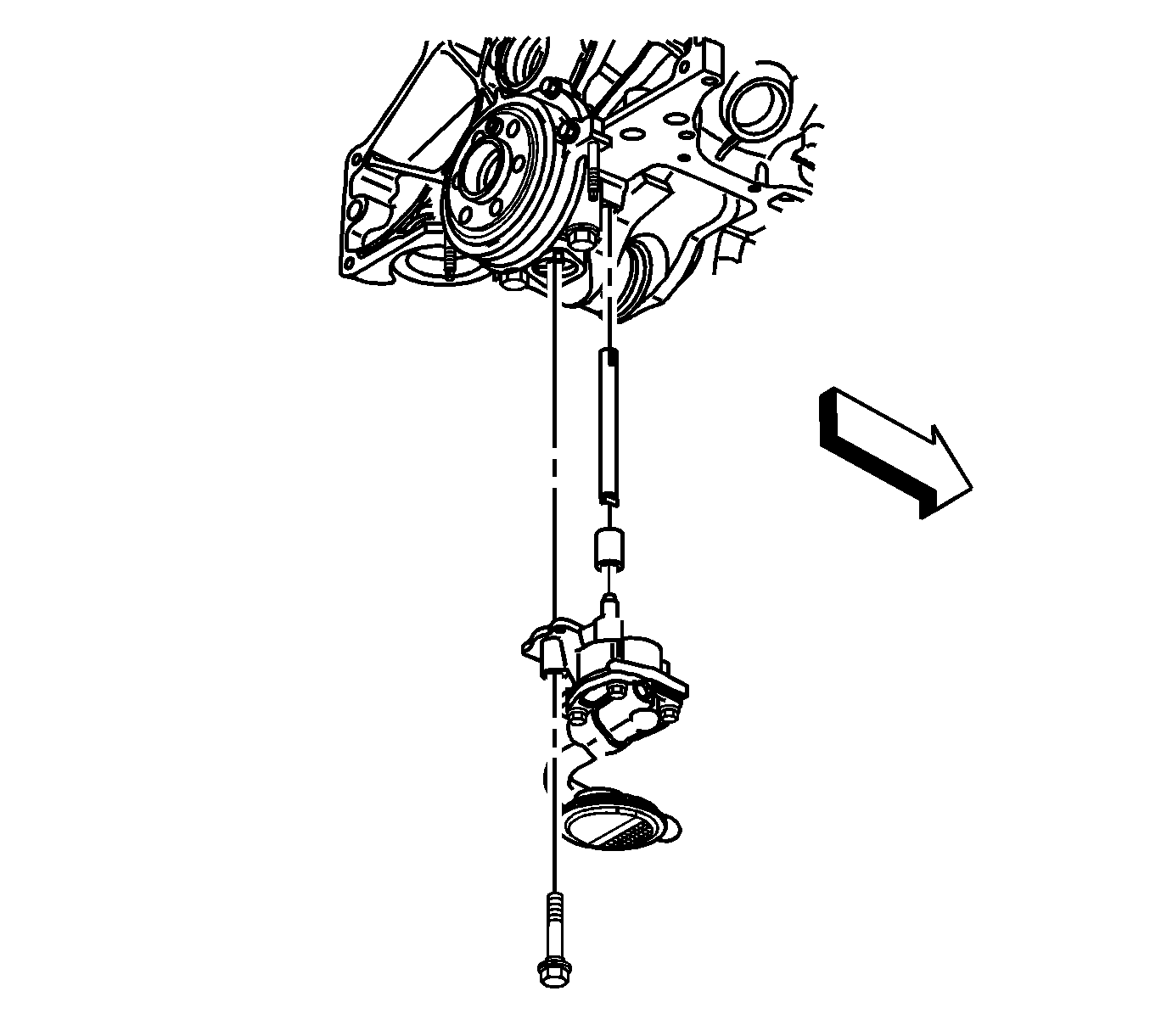

    4. Fig 2: Installing Oil Pump
    GM869740Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan. Refer to Oil Pan Replacement .
