Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealant GM P/N 12346004, (Canadian P/N 10953480), or equivalent around the indicator tube 13 mm (0.5 in) below the tube bead.
Install the indicator tube. Rotate the oil level indicator tube into position.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the indicator tube bolt.
Tighten: Tighten the bolt to 12 N.m (106 lb in).

Fig 1: Applying Sealant & Installing Oil Level Indicator Tube & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the right exhaust manifold. Refer to Exhaust Manifold Replacement - Right (4.3L Engine) in Engine Exhaust.
Install the oil level indicator.

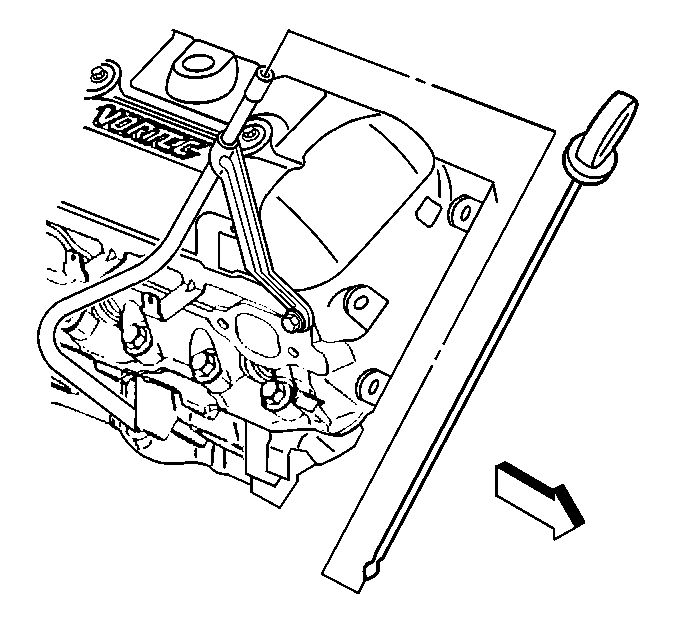

Fig 2: Installing Oil Level Indicator

Courtesy of GENERAL MOTORS CORP.
