Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission, if equipped. Refer to Transmission ReplacemeneTransmission Replacement (4.3L, 4.8L, 5.3L, and 6.0L Engines)t (4.8L, 5.3L, and 6.0L Engines) or Transmission Replacement (5.3L Engine w/RPO HP2) in Automatic Transmission - 4L60-E.
  2. Remove the clutch, if equipped. Refer to Clutch Assembly Replacement in Clutch.
  3. Remove the flywheel bolts.
  4. Remove the flywheel (1 or 2).

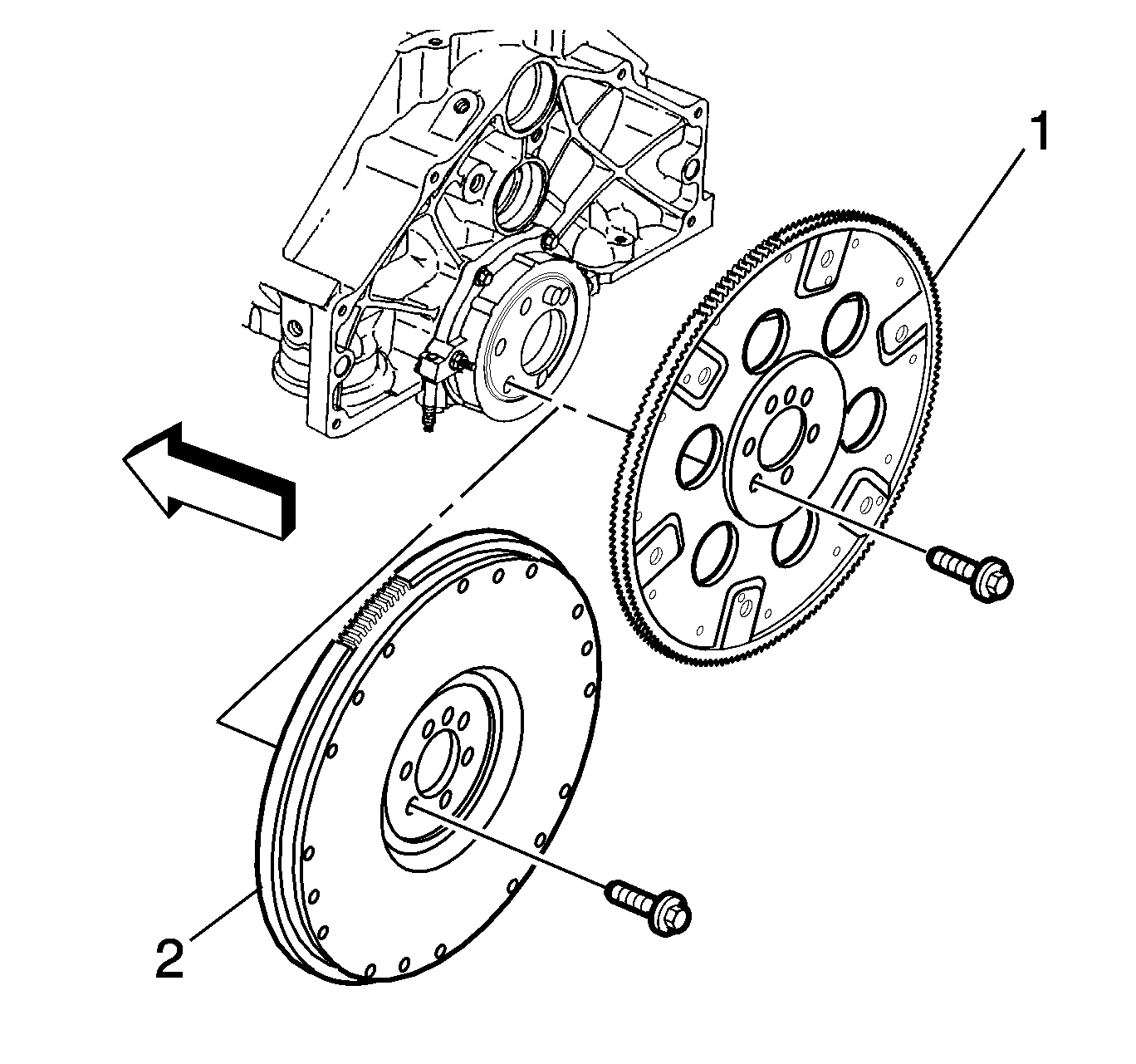

    5. Fig 1: Removing Flywheel
    GM188129Courtesy of GENERAL MOTORS CORP.
  5. If equipped with a manual transmission, note the position of any flywheel weights for assembly.
    6. Fig 2: Locating Flywheel Weights (Manual Transmission)
    GM64126Courtesy of GENERAL MOTORS CORP.
  6. Clean and inspect the flywheel, if necessary. Refer to Engine Flywheel Cleaning and Inspection .
