Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  2. Remove the crankshaft position (CKP) sensor reluctor ring.

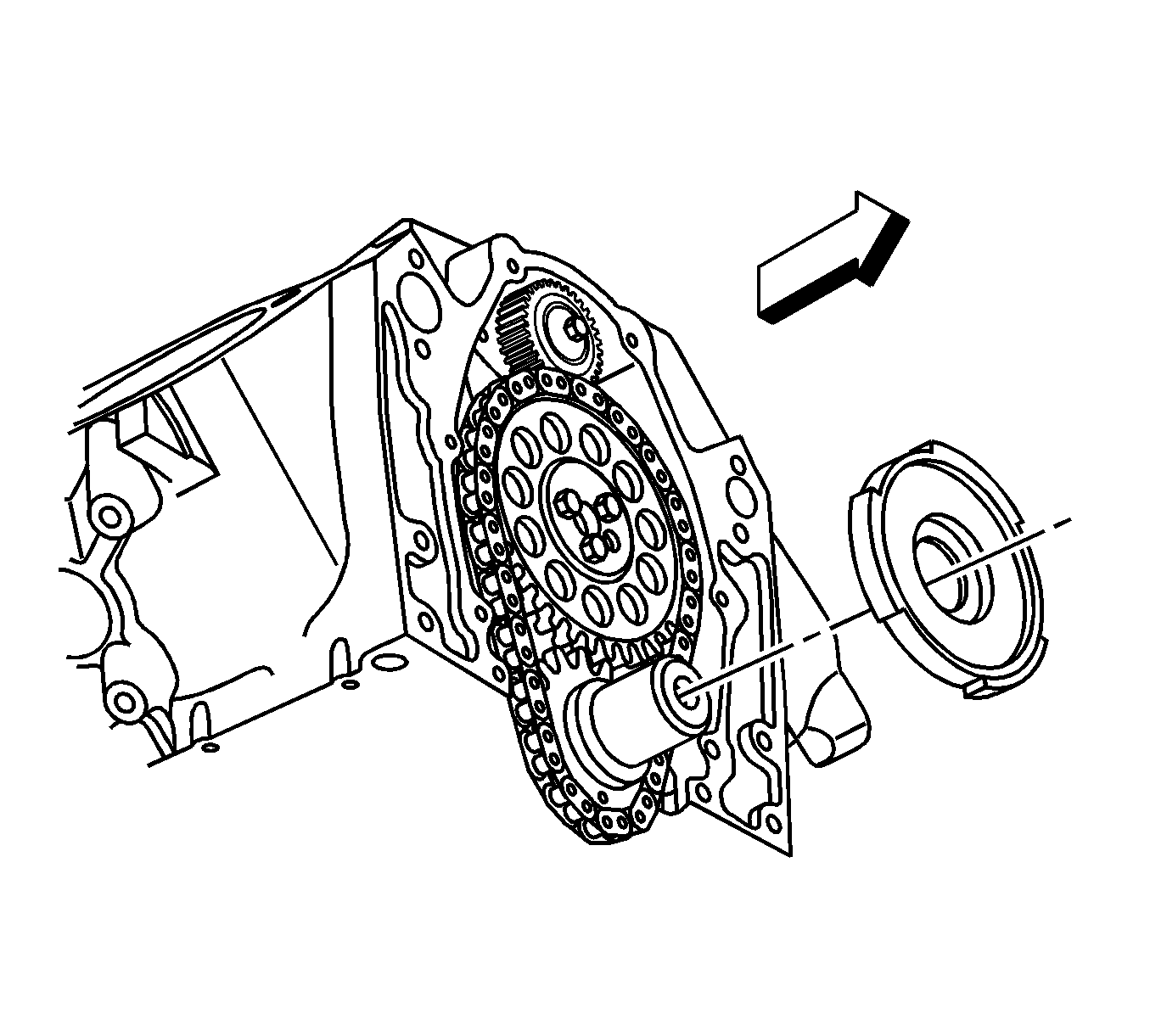

    3. Fig 1: Removing CKP Sensor Reluctor Ring
    GM869733Courtesy of GENERAL MOTORS CORP.
