Valve Lifter Installation

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply lubricant GM P/N 12345501 (Canadian P/N 992704) or equivalent, to the valve lifter rollers.
    2. IMPORTANT: If reusing the valve lifters, install the valve lifters in the original positions.
  2. Install the valve lifters.
    3. Fig 1: View Of Valve Lifters
    GM328593Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the valve lifter pushrod guides.

    Tighten:  Tighten the valve lifter pushrod guide bolts to 16 N.m (12 lb ft).

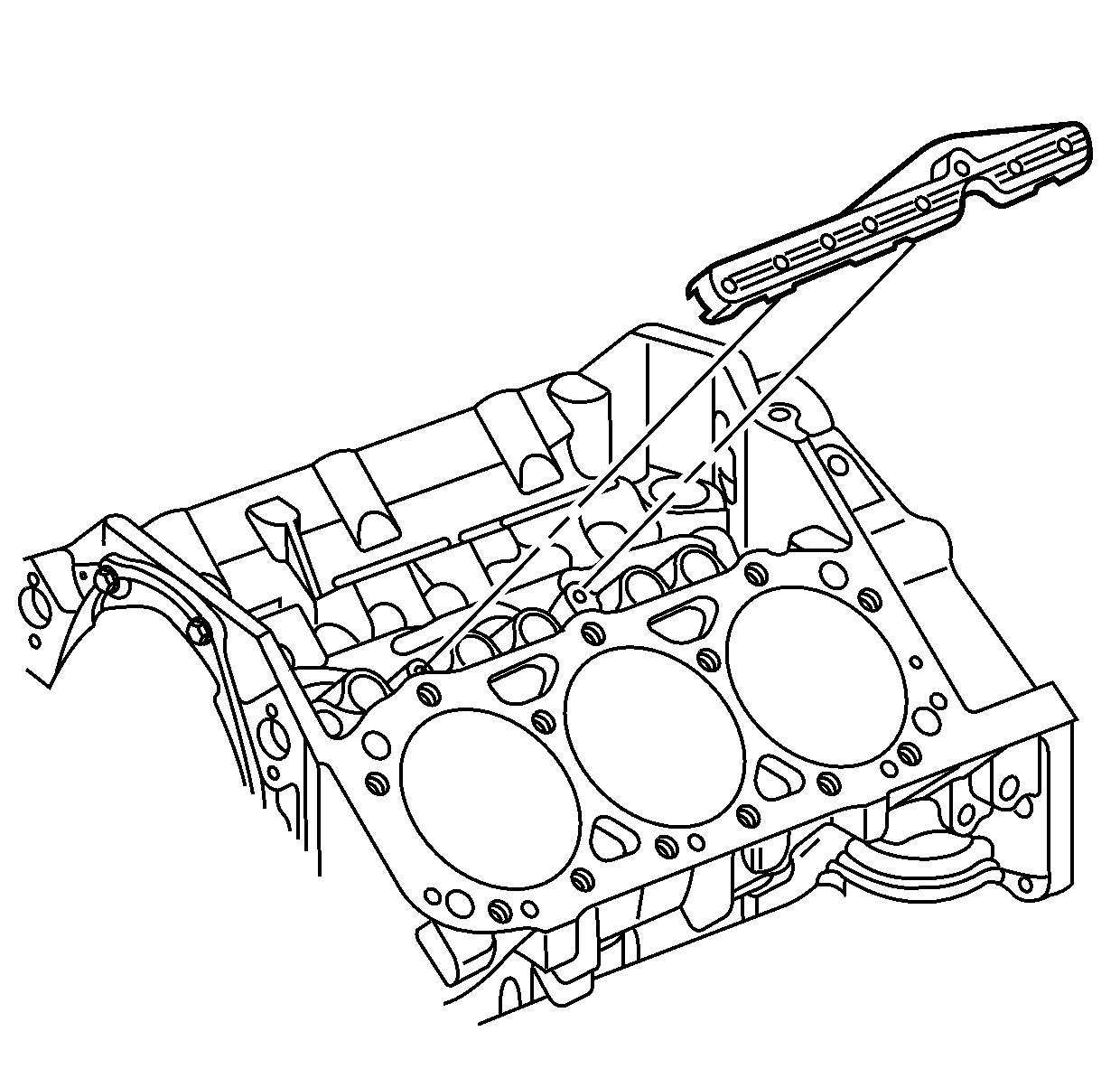

    4. Fig 2: View Of Valve Lifter Pushrod Guides
    GM328592Courtesy of GENERAL MOTORS CORP.
