Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the oil level indicator tube, if required.
    2. Fig 1: Removing Oil Level Indicator
    GM330580Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.

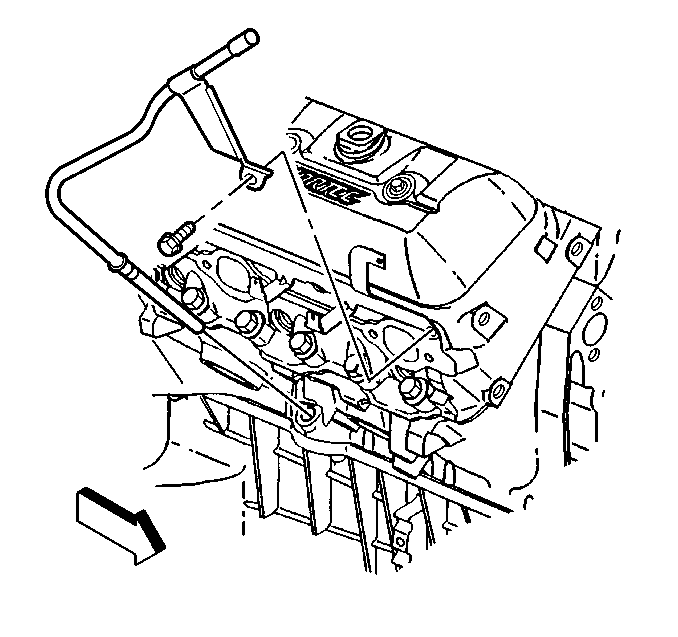

    3. Fig 2: Removing Oil Level Indicator Tube
    GM188047Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator tube from the engine block.
