Distributor Removal

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.
    2. Fig 1: Removing Ignition Coil Wire Harness
    GM328575Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.

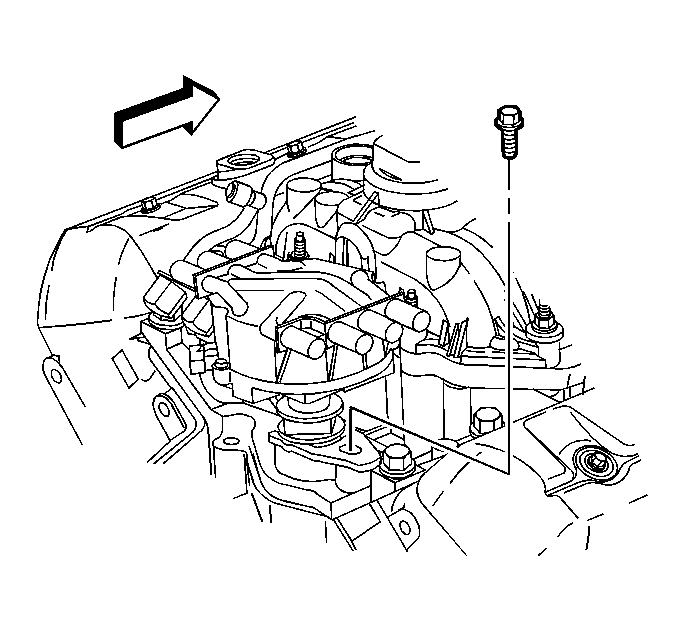

    3. Fig 2: Removing Distributor Clamp Bolt
    GM569265Courtesy of GENERAL MOTORS CORP.
  3. Remove the distributor and the distributor clamp.
  4. Remove the distributor gasket and discard.
    5. Fig 3: Removing Distributor Gasket
    GM523516Courtesy of GENERAL MOTORS CORP.
