Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate all of the seals and the metal friction points with power steering fluid.
Install the accumulator (2) and the O-ring seal (3).

Fig 1: Identifying Accumulator Components

Courtesy of GENERAL MOTORS CORP.

Place the J 26889 over the end of the accumulator.
Install the nut on the stud.
Depress the accumulator with a C-clamp.

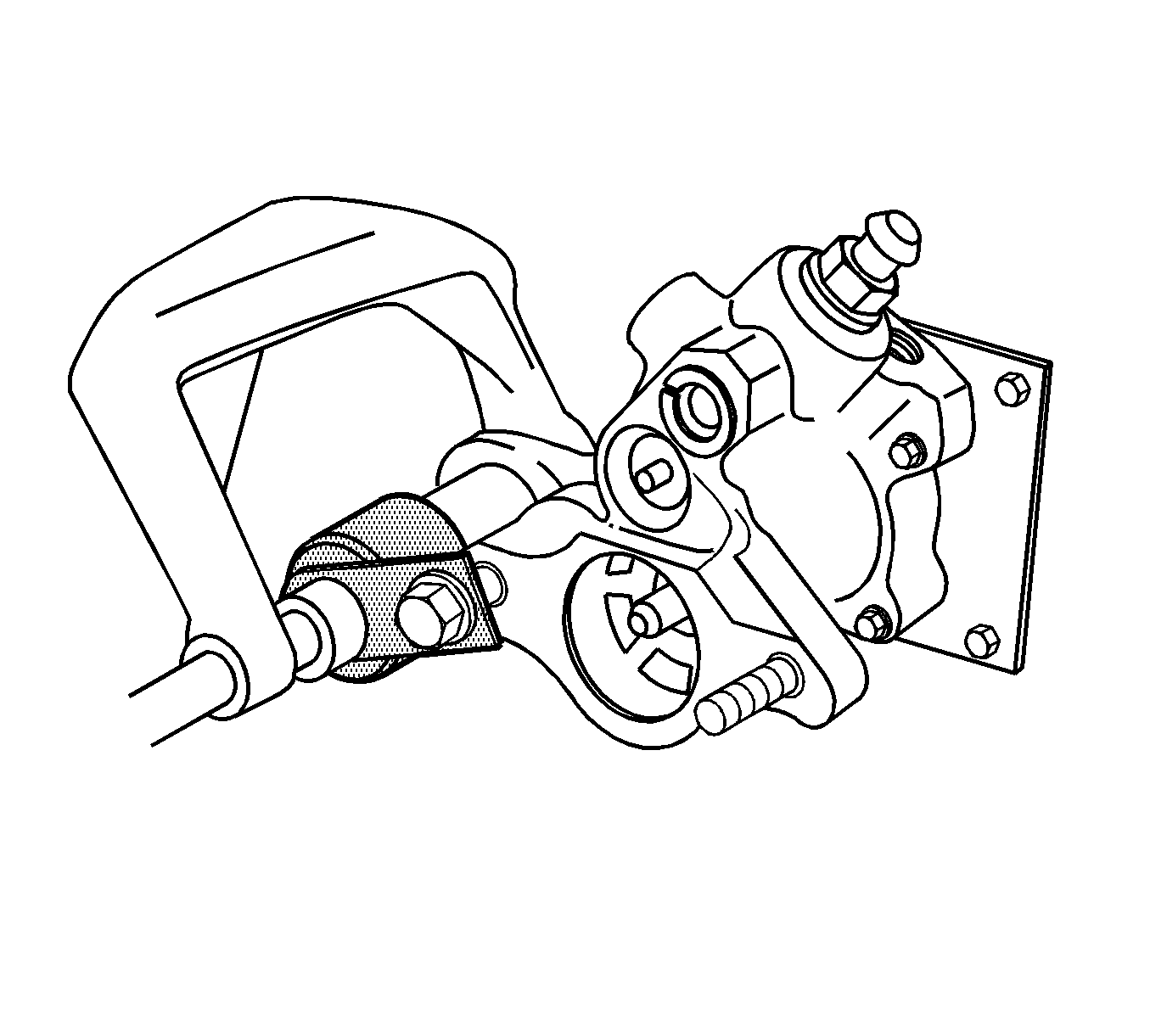

Fig 2: View Of Accumulator With C-Clamp

Courtesy of GENERAL MOTORS CORP.

Install the accumulator retainer ring (1).

Fig 3: Identifying Brake Booster Retaining Ring & Access Hole

Courtesy of GENERAL MOTORS CORP.

Release the C-clamp.

Fig 4: View Of Accumulator With C-Clamp

Courtesy of GENERAL MOTORS CORP.

Remove the nut from the stud.
Remove the J 26889 .
Install the master cylinder to the hydraulic booster. Refer to Master Cylinder Replacement (Vacuum Boost) or Master Cylinder Replacement (Hydraulic Boost) .
Release the park brake and unblock the wheels.
