Brake Pipe and Hose Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to Brake Fluid Irritant Caution
in Cautions and Notices.
NOTE:
Refer to Brake Fluid Effects on Paint and Electrical Components Notice
in Cautions and Notices.
- Visually inspect all of the brake pipes for the following conditions:
- Kinks, improper routing, missing or damaged retainers
- Leaking fittings, excessive corrosion
- If any of the brake pipes exhibited any of the conditions listed, then the identified pipe, or pipes, require replacement.
- Ensure that the vehicle axles are properly supported at ride height in order to maintain the proper relationship of the flexible brake hoses to the chassis.
- Visually inspect all of the flexible brake hoses for the following conditions:

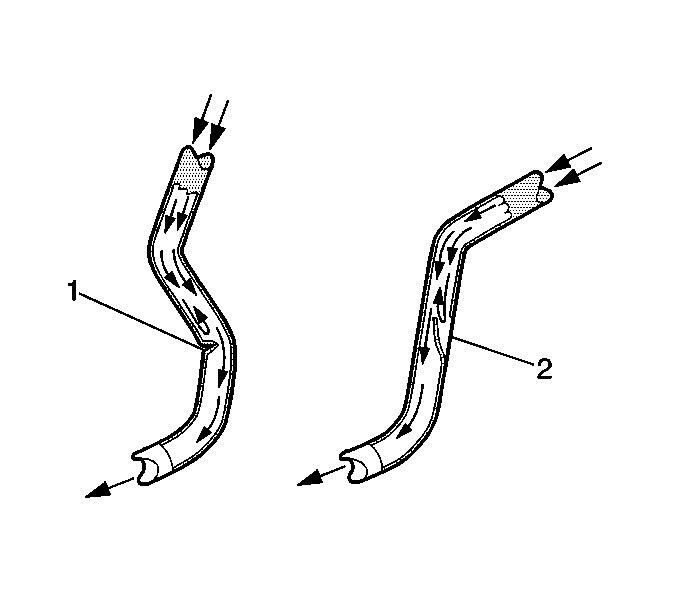

- Kinks (1), improper routing, twists, chafing, missing or damaged retainers
- Leaking connections, cracking, dry-rot, blisters, bulges
- If any of the flexible brake hoses exhibited any of the conditions listed, then the identified flexible brake hose, or hoses require replacement.
- Squeeze the flexible brake hoses with firm finger pressure to check for soft spots (2), indicating an internal restriction. Check the entire length of each flexible brake hose.
- If any of the flexible brake hoses were found to have soft spots (2), then the identified flexible brake hose, or hoses require replacement.
