Brake Pedal Pushrod Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

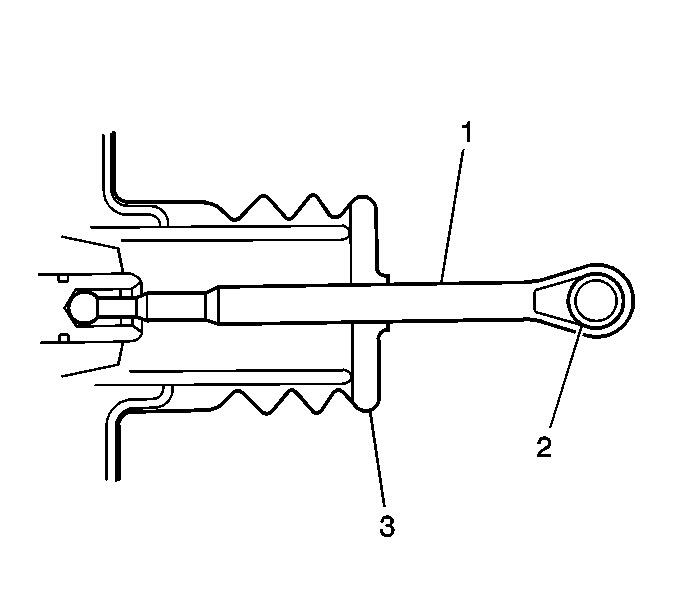

- Disconnect the brake pedal pushrod (1) from the brake pedal.
- Inspect the brake pedal pushrod eyelet bushing (2), if equipped, for cracks and/or excessive wear.
- Reposition the pedal pushrod boot (3) toward the front of the vehicle to expose as much of the pedal pushrod (1) as possible.
- Inspect the brake pedal pushrod (1) for straightness.
- If the brake pedal pushrod eyelet bushing (2) exhibited cracks and/or excessive wear, then the bushing requires replacement.
- If the brake pedal pushrod (1) is not straight, then the pushrod requires replacement.
- Return the pedal pushrod boot (3) to its original position on the pedal pushrod (1).
- Connect the brake pedal pushrod (1) to the brake pedal.
