Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Drain the differential carrier assembly. Refer to Lubricant Replacement - Front Drive Axle .
  3. Remove the right side seal and/or bearing by performing the following steps:
    1. Remove the inner axle shaft and housing assembly from the differential carrier case assembly. Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 S4WD and 9.25 Axles)  or Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 F4WD Axle) .
    2. Remove the clutch fork assembly components and the inner axle shaft from the inner axle shaft housing. Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 S4WD and 9.25 Axles)  or Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 F4WD Axle) .
    3. Install the inner axle shaft housing into a vise.

      Clamp only on the mounting flange of the inner axle shaft housing.

    4. Install the J 29369-1  , 8.25 inch axle, or the J 29369-2  , 9.25 inch axle, behind the inner axle shaft seal or the inner axle shaft bearing as necessary.
    5. Install the J 2619-01  (2) to the J 29369-1  or the J 29369-2  (1).
    6. Remove the inner axle shaft seal and/or the inner axle shaft bearing using the J 2619-01  .
    4. Fig 1: Removing The Inner Axle Shaft Seal And/Or The Inner Axle Shaft Bearing Usingj 29369-2 & J 2619-01
    GM834245Courtesy of GENERAL MOTORS CORP.
  4. If only replacing the left side seal, perform the following steps:
    • Place an alignment mark between the inner axle shaft and the wheel drive shaft.
    • Disconnect the wheel drive shaft from the inner axle shaft.
    • Remove the inner axle shaft using a hammer and a brass drift.
    • Remove the inner axle shaft seal using a suitable seal remover tool.

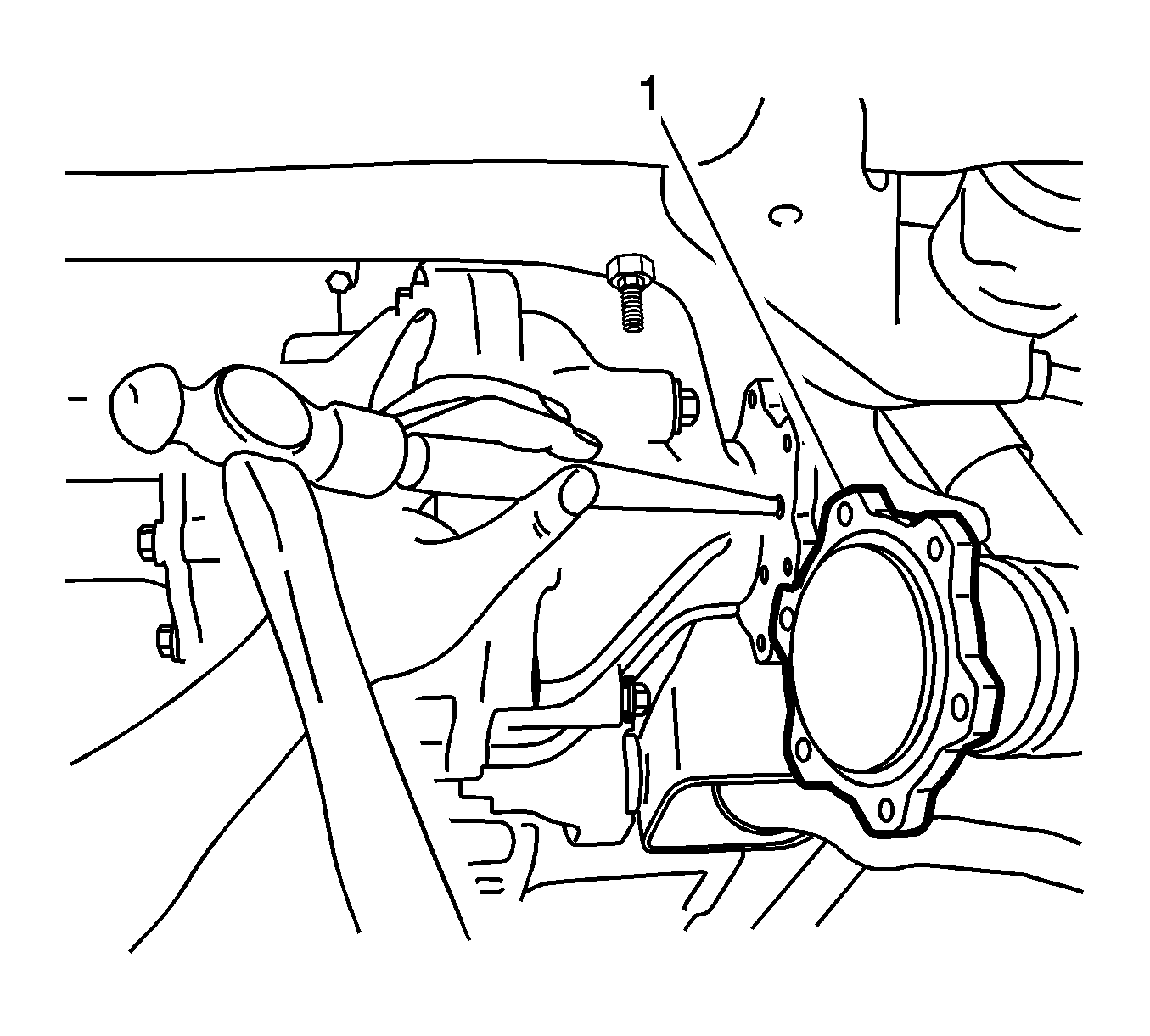

    5. Fig 2: Removing Inner Axle Shaft - Front Drive Axle
    GM1581720Courtesy of GENERAL MOTORS CORP.
  5. If replacing both the left side seal and bearing, perform the following steps:
    1. Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
    2. Place the differential carrier assembly into a vise.

      Clamp only on the mounting flange of the differential carrier assembly case.

    3. Remove the inner axle shaft using a hammer and a brass drift.
    4. Install the J 29369-1  , 8.25 inch axle, or the J 29369-2  , 9.25 inch axle (1), behind the inner axle shaft seal or the inner axle shaft bearing as necessary.
    5. Install the J 2619-01  (2) to the J 29369-1  or the J 29369-2  .
    6. Remove the inner axle shaft seal and/or the inner axle shaft bearing using the J 2619-01  .
    6. Fig 3: Removing Inner Axle Shaft Seal/Bearing Using J 29369-2 & J 2619-01 - Front Drive Axle
    GM1332786Courtesy of GENERAL MOTORS CORP.
