Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right side bearing with the square shoulder in using the J 36609  (1) and the J 8092  (2).

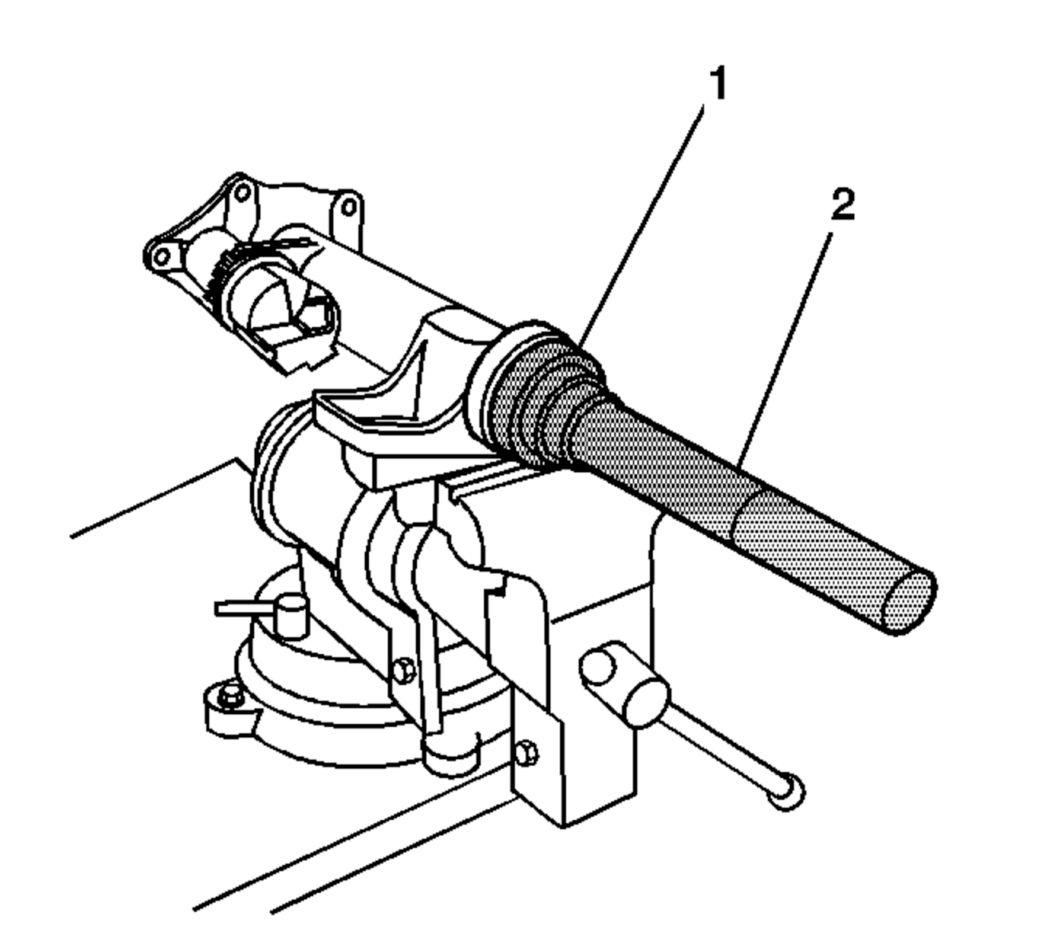

    2. Fig 1: Installing Side Bearing Using J 36609 & J 8092 - Front Drive Axle
    GM834254Courtesy of GENERAL MOTORS CORP.
  2. Install the new axle shaft seal using the J 45225  (1) and the J 8092  (2).

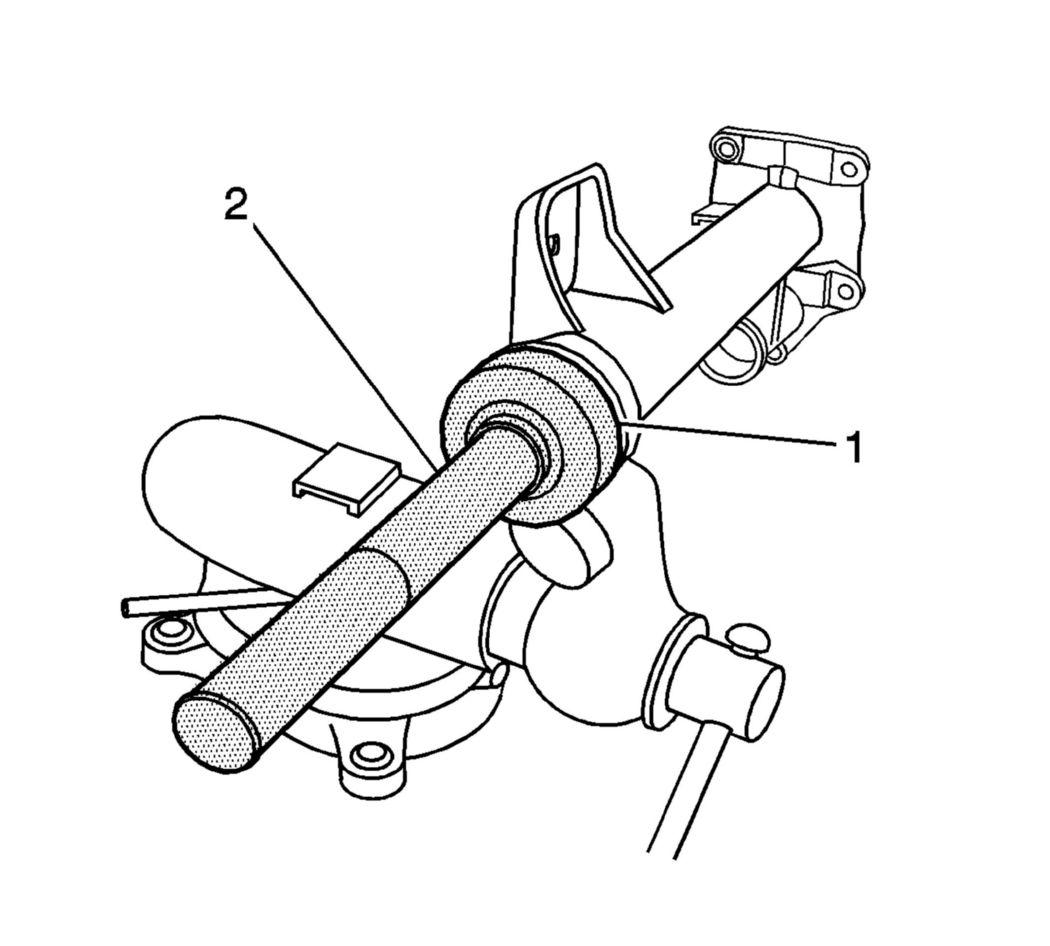

    3. Fig 2: Installing New Axle Shaft Seal Using J 45225 & J 8092 - Front Drive Axle
    GM1486575Courtesy of GENERAL MOTORS CORP.
  3. Install the inner axle shaft into the inner axle shaft housing.

    Carefully tap the inner axle shaft into place with a soft-faced mallet.

  4. Install the clutch fork assembly components. Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 S4WD and 9.25 Axles)  or Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 F4WD Axle) .
  5. Install the inner axle shaft and housing assembly to the differential carrier case assembly. Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 S4WD and 9.25 Axles)  or Inner Shaft and/or Housing Replacement - Front Drive Axle (8.25 F4WD Axle) .
  6. If both the left side bearing and seal was removed, perform the following step. Install the left side bearing with the square shoulder in using the J 36609  (1) and the J 8092  (2).

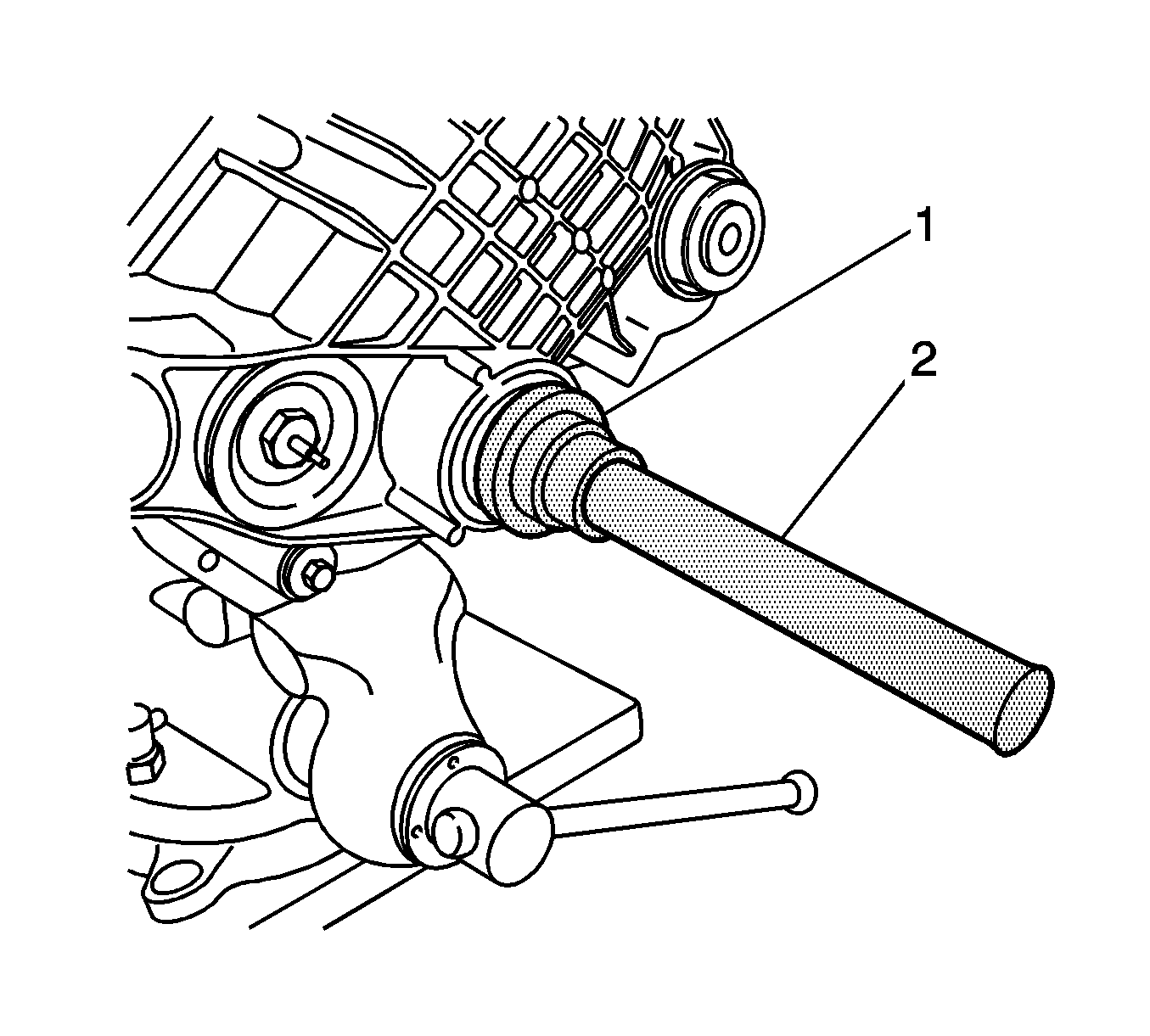

    7. Fig 3: Install The Left Side Bearing Using J 36609 & J 8092 - Front Drive Axle
    GM1332722Courtesy of GENERAL MOTORS CORP.
  7. If both the left side bearing and seal was removed, perform the following step. Install the new axle shaft seal using theJ 45225  (1) and the J 8092  (2).

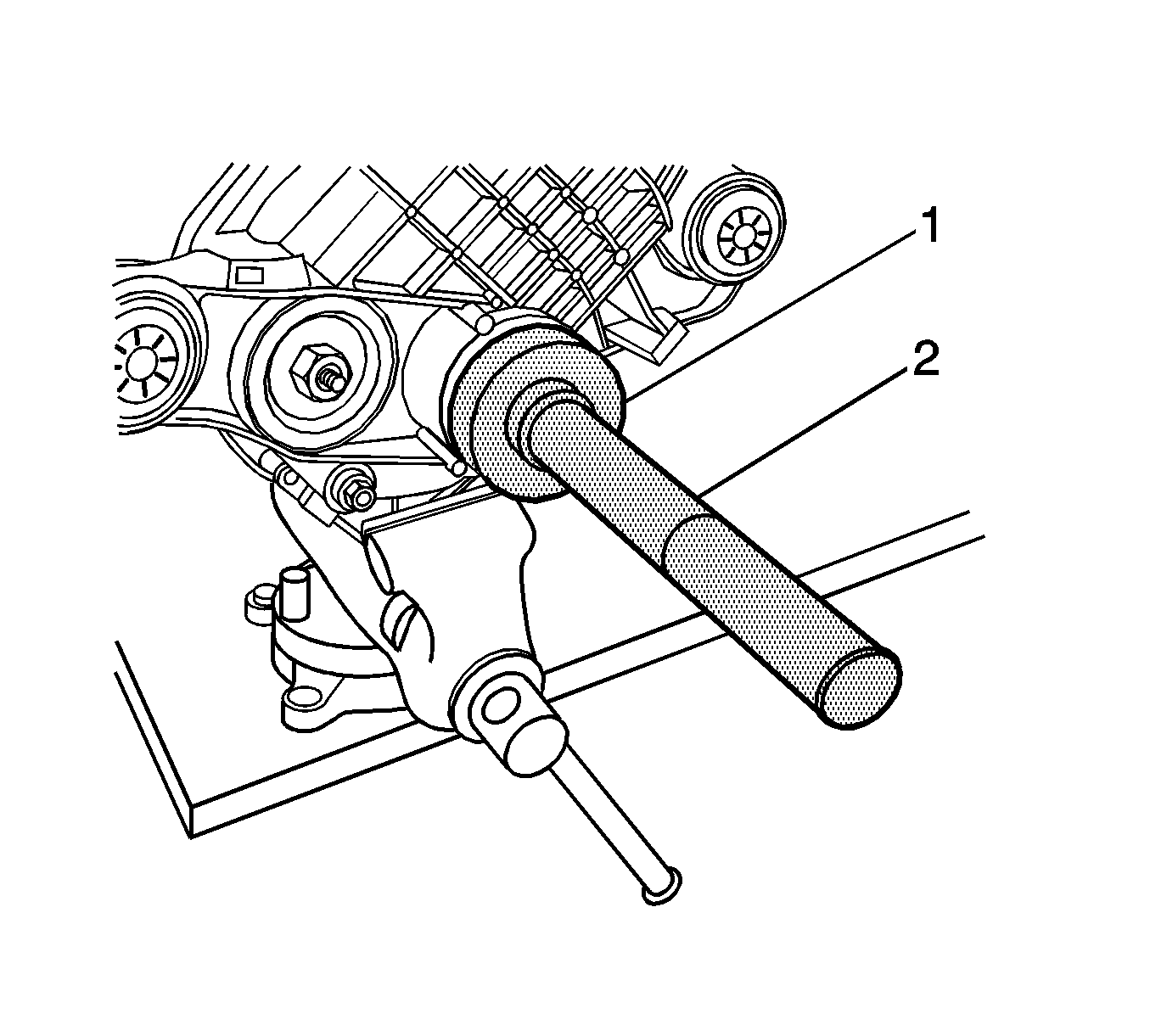

    8. Fig 4: Install The New Axle Shaft Seal Using J 45225 & J 8092 - Front Drive Axle
    GM1486568Courtesy of GENERAL MOTORS CORP.
  8. If both the left side bearing and seal was removed, perform the following step. Install the inner axle shaft into the differential case side gear using a soft-faced mallet until the retaining ring on the inner axle shaft is fully seated within the groove in the differential case side gear.

    Pull back on the inner axle shaft to ensure that the inner axle shaft is properly retained in the differential case side gear.

  9. If both the left side bearing and seal was removed, perform the following step. Install the front differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
  10. If only the left side seal was removed, perform the following step. Install the seal using the J 45225  and a soft-faced mallet.

    Tap only on the center portion of the J 45225  in order to drive the seal in evenly.

    11. Fig 5: Installing Seal Using J 45225 - Front Drive Axle
    GM1581722Courtesy of GENERAL MOTORS CORP.
  11. If only the left side seal was removed, perform the following step. Install the inner axle shaft into the differential case side gear using a soft-faced mallet until the retaining ring on the inner axle shaft is fully seated within the groove in the differential case side gear.

    Pull back on the inner axle shaft to ensure that the inner axle shaft is properly retained in the differential case side gear.

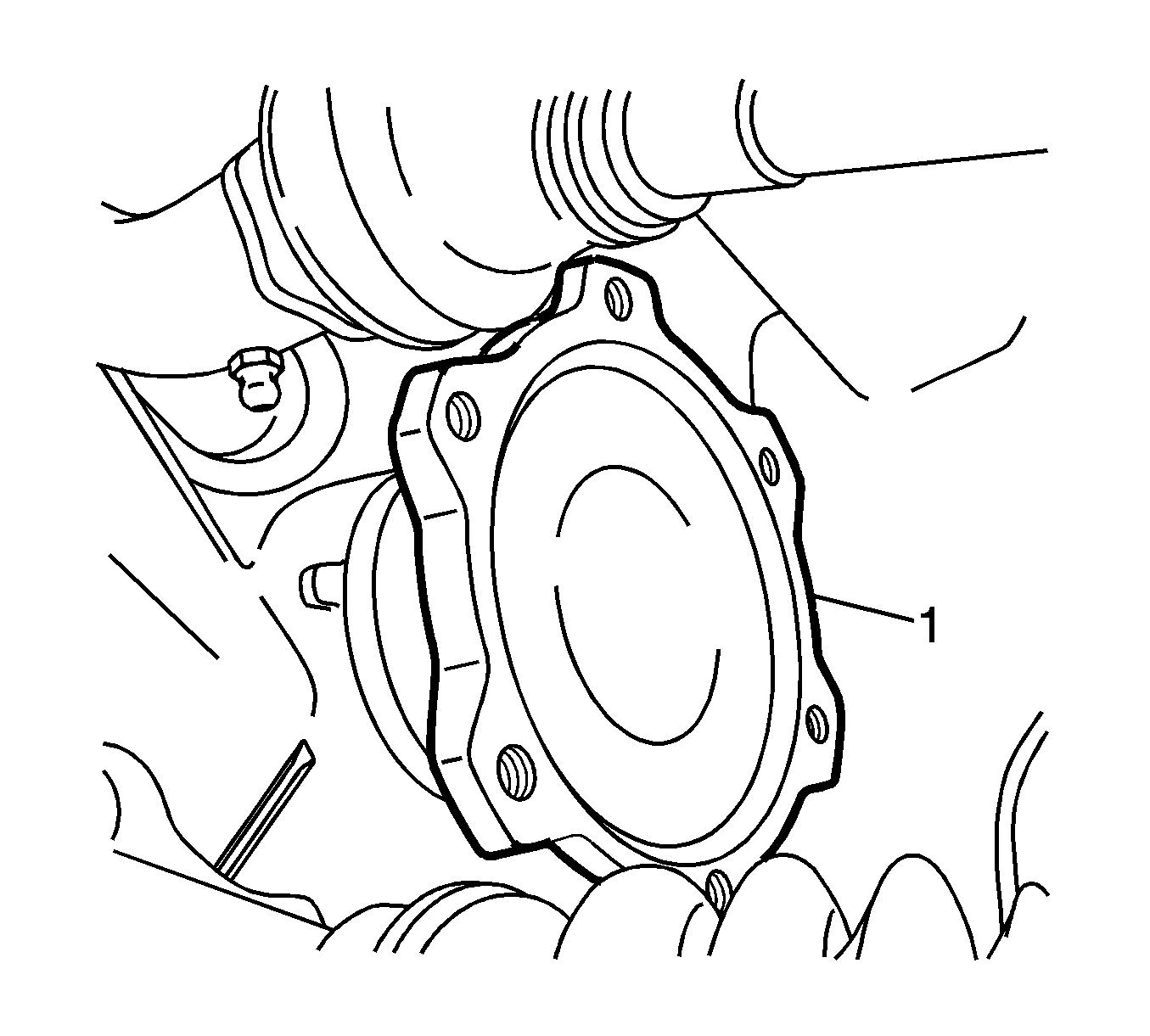

    12. Fig 6: Axle Shaft Inner Flange - Front Drive Axle
    GM1581721Courtesy of GENERAL MOTORS CORP.
  12. If only the left side seal was removed, perform the following step. Install the wheel drive shaft to the inner axle shaft.
    13. NOTE: Refer to Fastener Notice in Cautions and Notices.
  13. If only the left side seal was removed, perform the following step. Install the wheel drive shaft to the inner axle shaft bolts.

    Tighten:  Tighten the wheel drive shaft to inner axle shaft bolts to 79 N.m (58 lb ft).

  14. Fill the differential carrier assembly. Use the correct fluid. Refer toLubricant Replacement - Front Drive Axle .
  15. Lower the vehicle.
