Inline Harness Connectors: C404

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

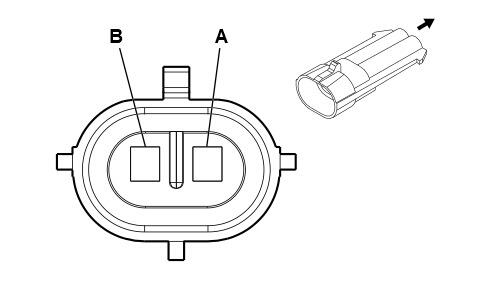

C404 Left Clearance Lamp Harness to License Lamp Harness Terminal Identification (NYS or R05)

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN/WHT 2609 Park Lamps Supply Voltage A BRN/WHT 2609 Park Lamps Supply Voltage
B BLK 1750 Ground B BLK 1750 Ground
