Inline Harness Connectors: C330

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C330 Body Harness to Passenger Seat Harness Terminal Identification (AL0)

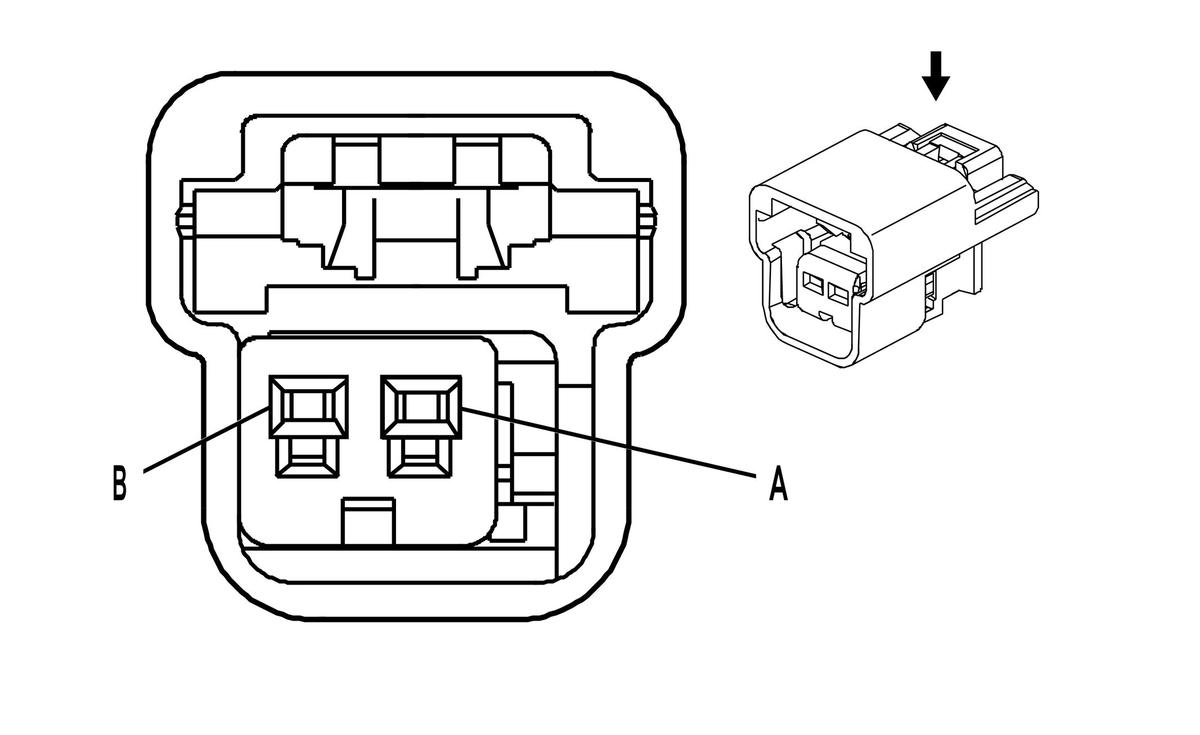

GM1385747Courtesy of GENERAL MOTORS CORP.

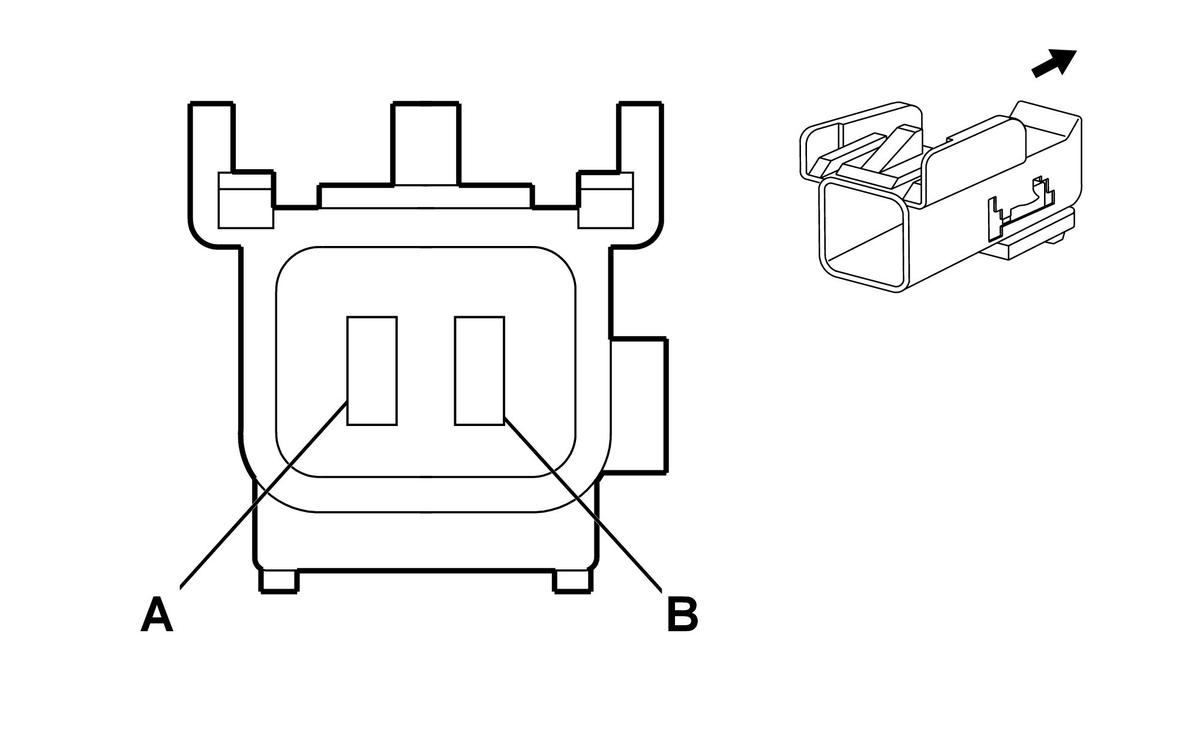

GM872877Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332129
  • 2-Way F 150 GT Series (BLK)
 Connector Part Information
  • 15332130
  • 2-Way M 150 GT Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN/BLK 371 I/P Module Disable Switch - Signal A TAN/BLK 371 I/P Module Disable Switch - Signal
B PNK 353 I/P Module Suppression Indicator Control B PNK 353 I/P Module Suppression Indicator Control
