Inline Harness Connectors: C329

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C329 Lumbar Bolster Harness to Passenger Seat Harness Terminal Identification (AG2)

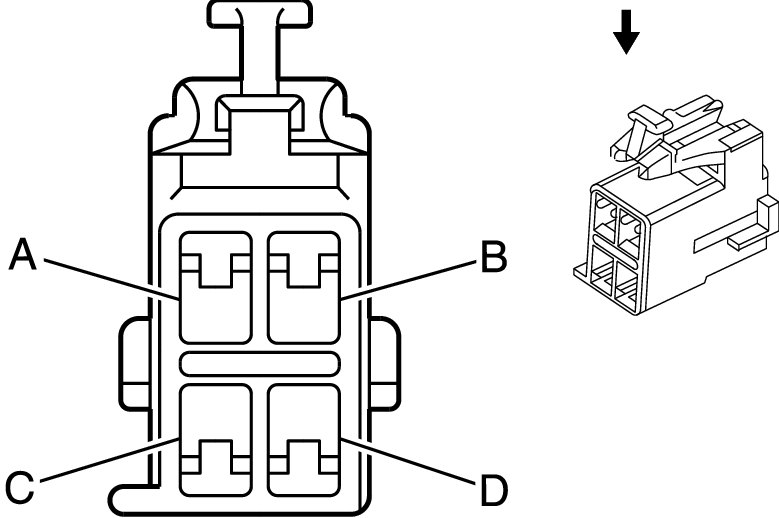

GM39667Courtesy of GENERAL MOTORS CORP.
GM130711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129136
  • 4-Way F Metri-Pack 280 Series (GRY)
 Connector Part Information
  • 12129135
  • 4-Way M Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK BLU 211 Passenger Seat Lumbar Motor Forward Control A DK BLU 211 Passenger Seat Lumbar Motor Forward Control
B WHT 210 Passenger Seat Lumbar Motor Rearward Control B WHT 210 Passenger Seat Lumbar Motor Rearward Control
C ORN 2462 Passenger Torso Bolster Out Control C DK BLU 2462 Passenger Torso Bolster Out Control
D PNK 2427 Passenger Torso Bolster In Control D LT BLU 2427 Passenger Torso Bolster In Control
