Inline Harness Connectors: C324

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

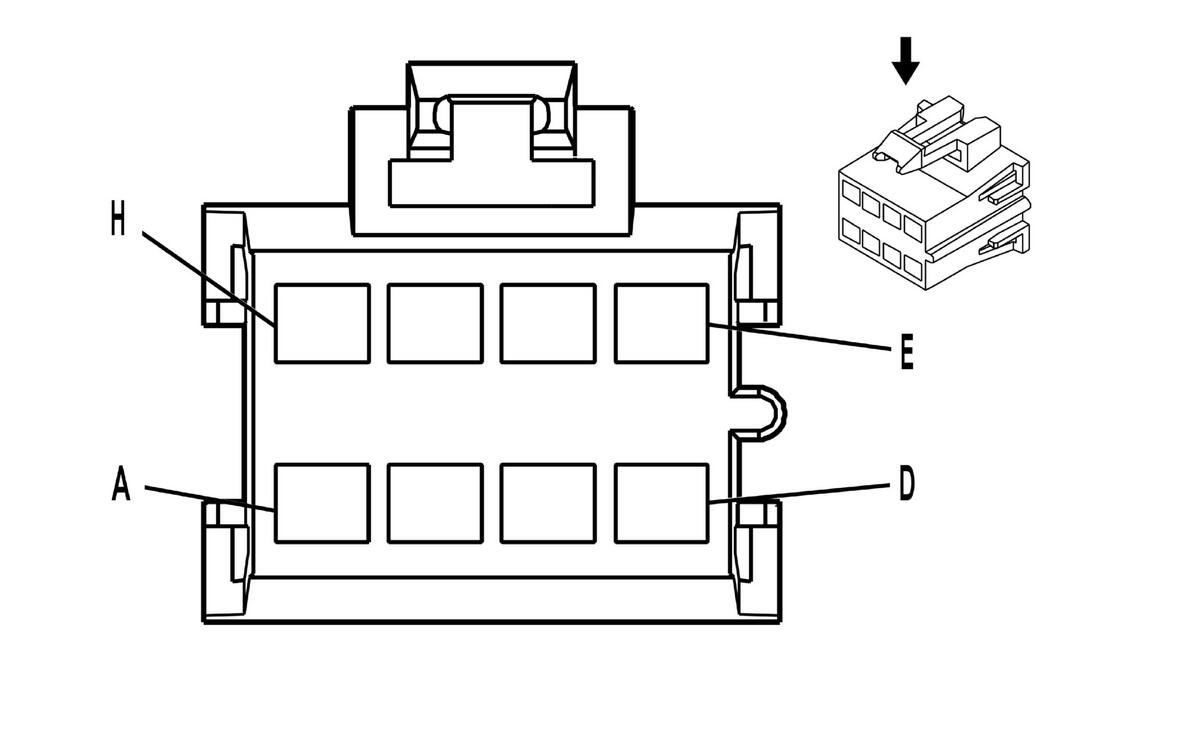

C324 Lumbar Bolster Harness to Seat Harness Terminal Identification (AN3)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064998 8-Way F Metri-Pack 280 Series (BLK)		Connector Part Information		15358651 8-Way M Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	PPL/WHT	611	Driver Seat Lumbar Motor Forward Control	A	DK BLU	611	Driver Seat Lumbar Motor Forward Control
B	LT BLU	1063	Driver Seat Lumbar Horizontal Position Sensor Signal	B	YEL	1063	Driver Seat Lumbar Horizontal Position Sensor Signal
C	BRN	940	5-Volt Reference	C	WHT	940	5-Volt Reference
C	BRN	940	5-Volt Reference	C	WHT	940	5-Volt Reference
D	BRN/WHT	1258	Driver Seat Torso Bolster Out Control	D	PPL	1258	Driver Seat Torso Bolster Out Control
E	RED/BLK	1257	Driver Seat Torso Bolster In Control	E	YEL	1257	Driver Seat Torso Bolster In Control
F	DK BLU/WHT	718	Low Reference	F	BRN/WHT	718	Low Reference
F	DK BLU/WHT	718	Low Reference	F	BRN/WHT	718	Low Reference
G	BRN/WHT	5700	Drivers Seat Torso Bolster Position Sensor Signal	G	PPL	5700	Drivers Seat Torso Bolster Position Sensor Signal
H	DK BLU/WHT	610	Driver Seat Lumbar Motor Rearward Control	H	PNK	610	Driver Seat Lumbar Motor Rearward Control
